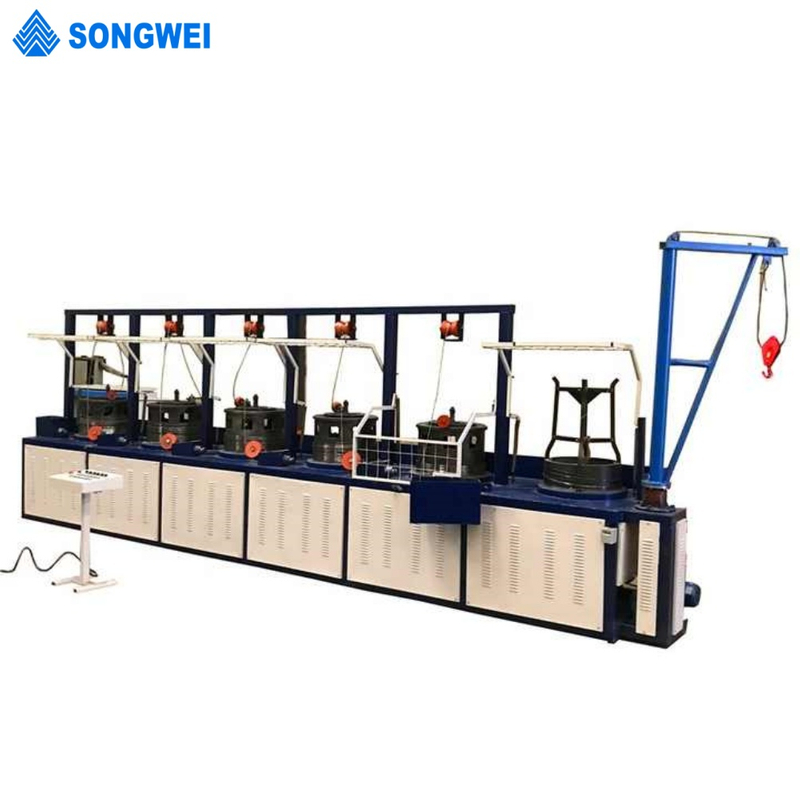

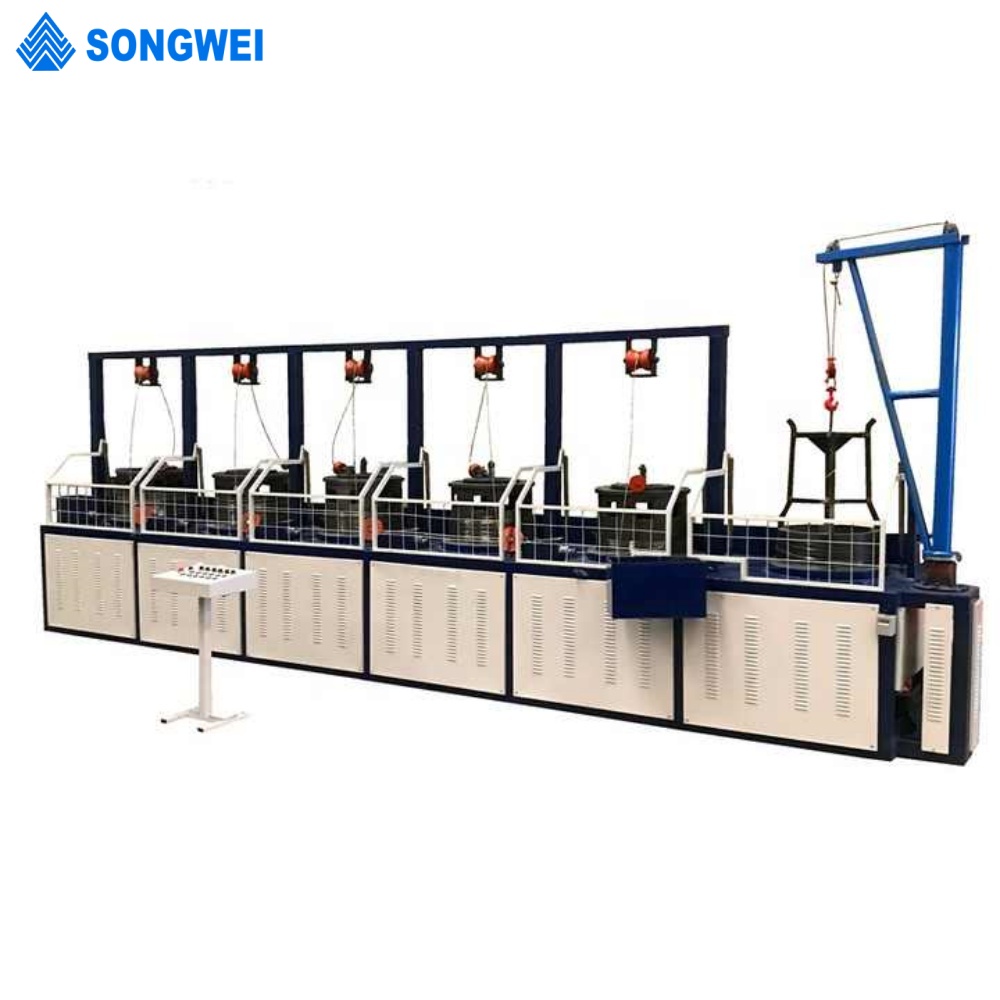

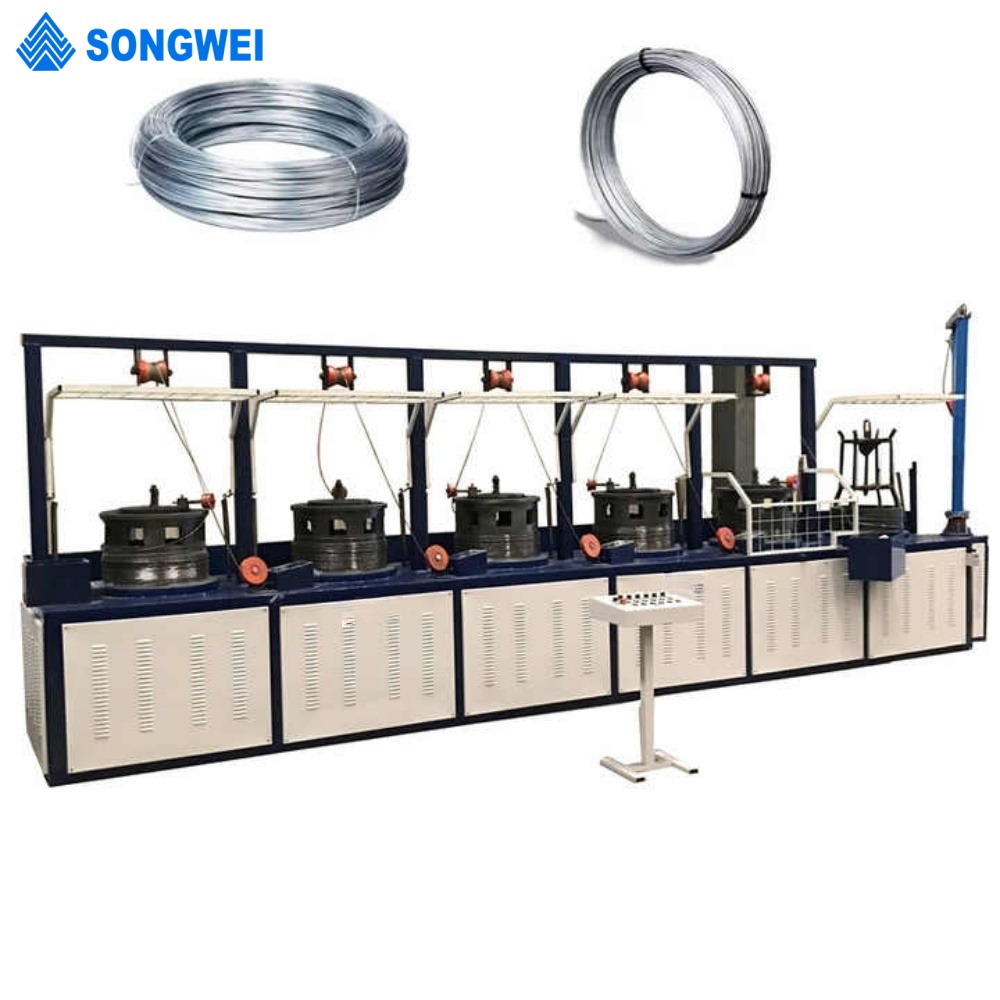

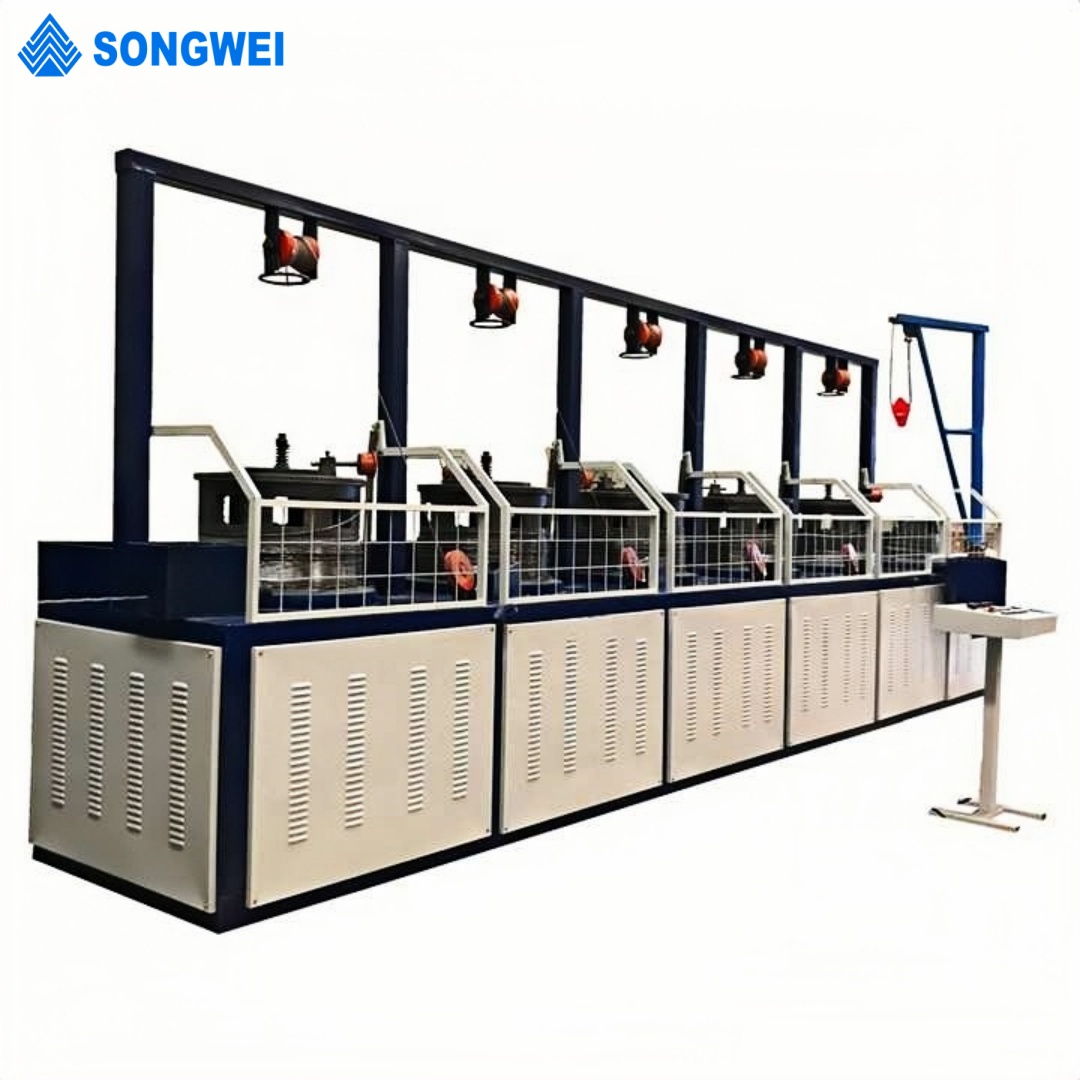

Automatic Pulley Wire Drawing Machine

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Introduction

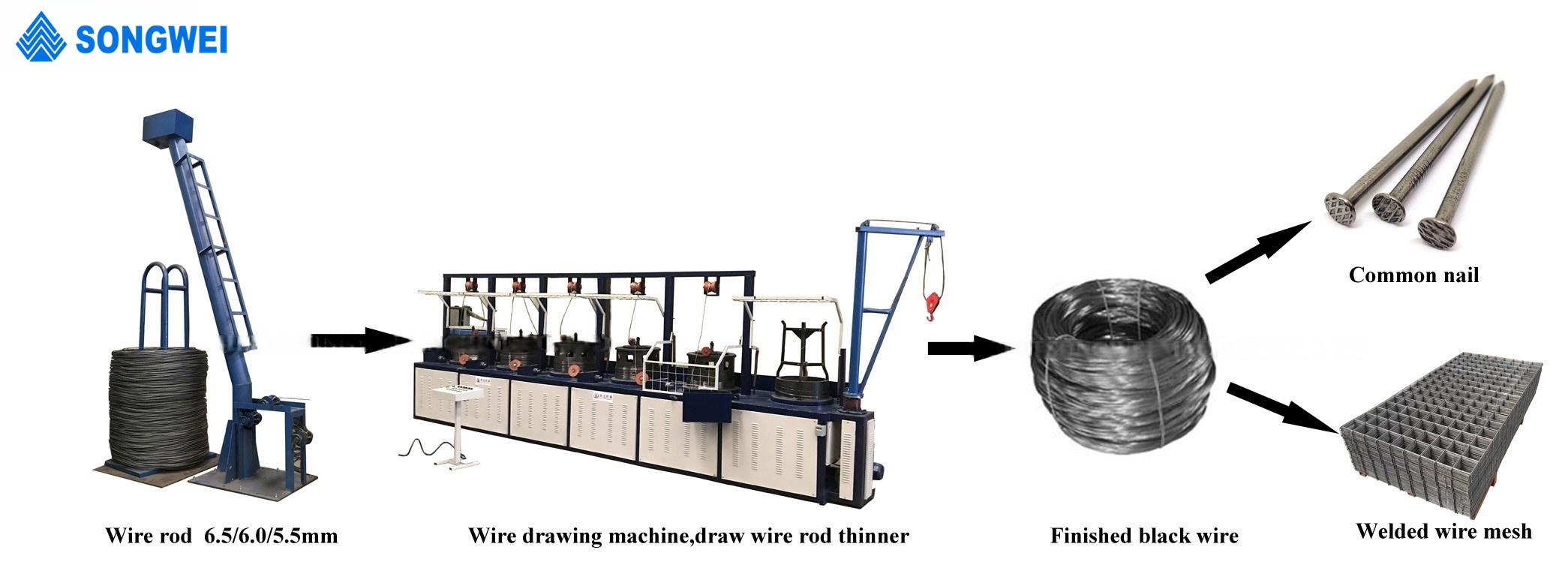

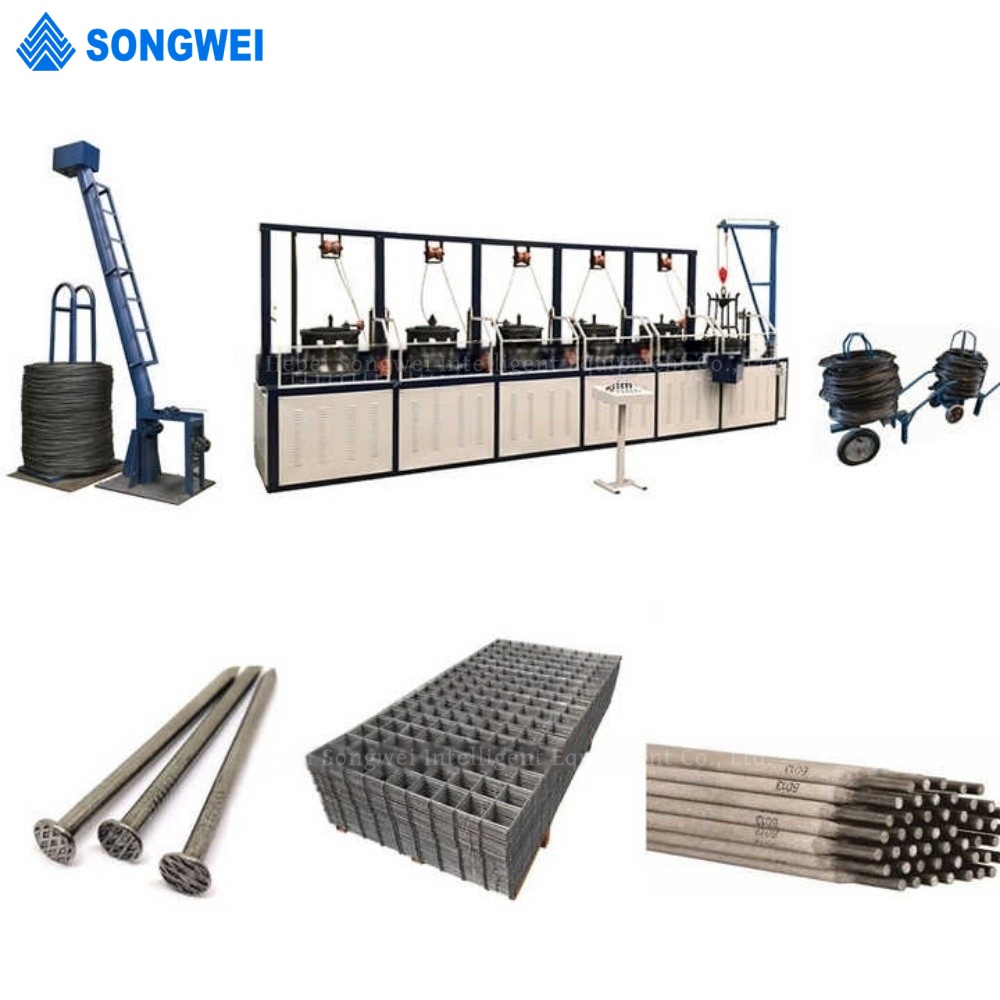

The pulley wire drawing machine is composed of a drum, a mold box, a track wheel frame, a wire lifting frame, and an electrical control system. This model of wire drawing machine is mainly used for drawing high carbon steel wires, as well as low and medium carbon steel wires and non-ferrous metal wires. It is suitable for batch drawing processing of standard components such as nails, wire rods, steel wire ropes, galvanized iron wires, etc.

Product Parameters

Model	LW450-6D	LW560-6D
Drum diameter(mm)	450	560
Drawing dies(Times)	6	6
Inlet wire diameter(mm)	3.5-4.0	5.5-6.5
Outlet wire diameter(mm)	1.6-1.8	2.5-3.0
Drawing speed(m/min)	200-280	150-230
Total reduction rate(%)	77.9	78
Motor power(kW)	11/15	15/18.5
Note:We can design the scheme for you according to your requirements.

Machine Advantages

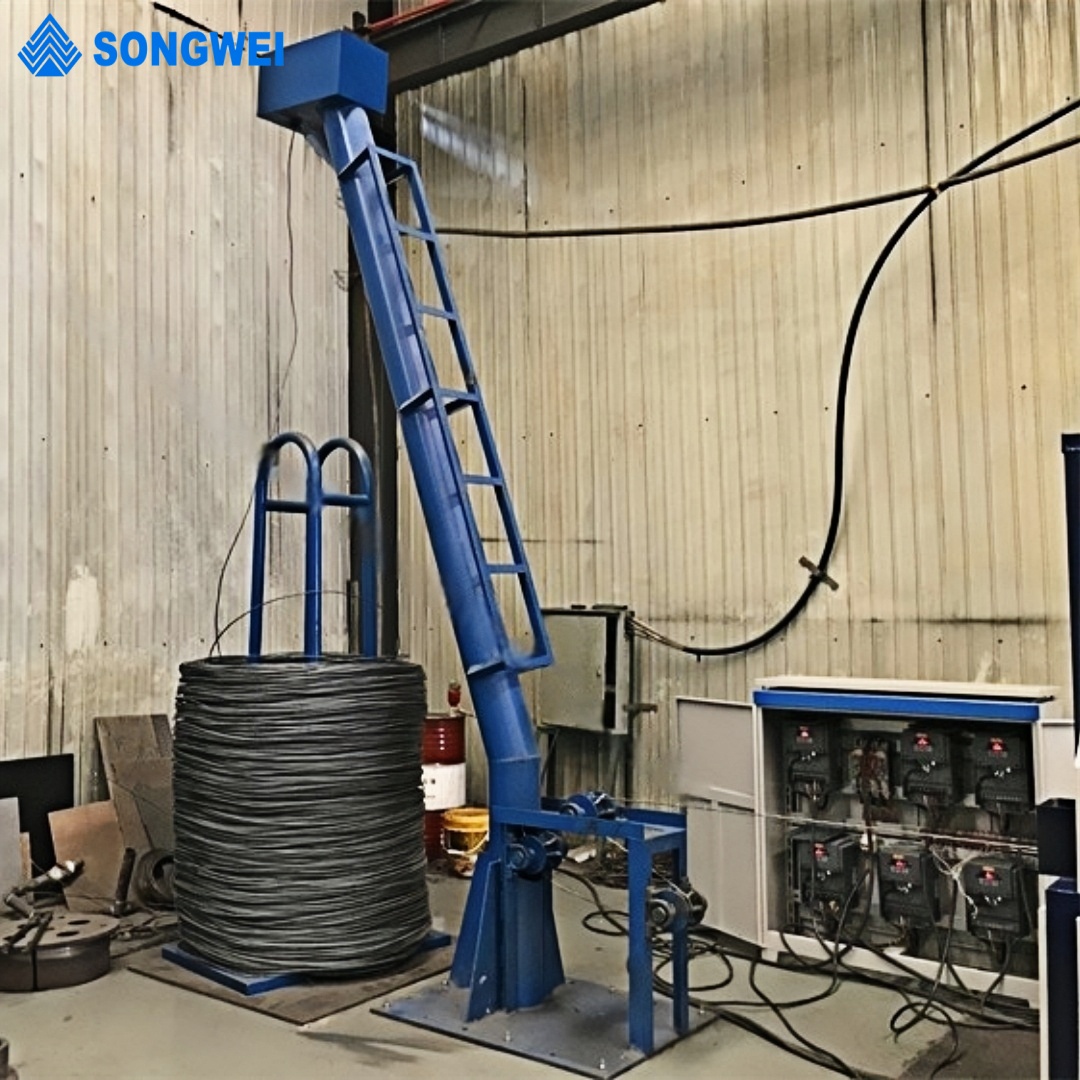

Wire Pay-off system

The wire pay-off system already includes a heavy-duty pay-off reel capable of carrying 2 tons of wire, and is also equipped with a wire shelling device.

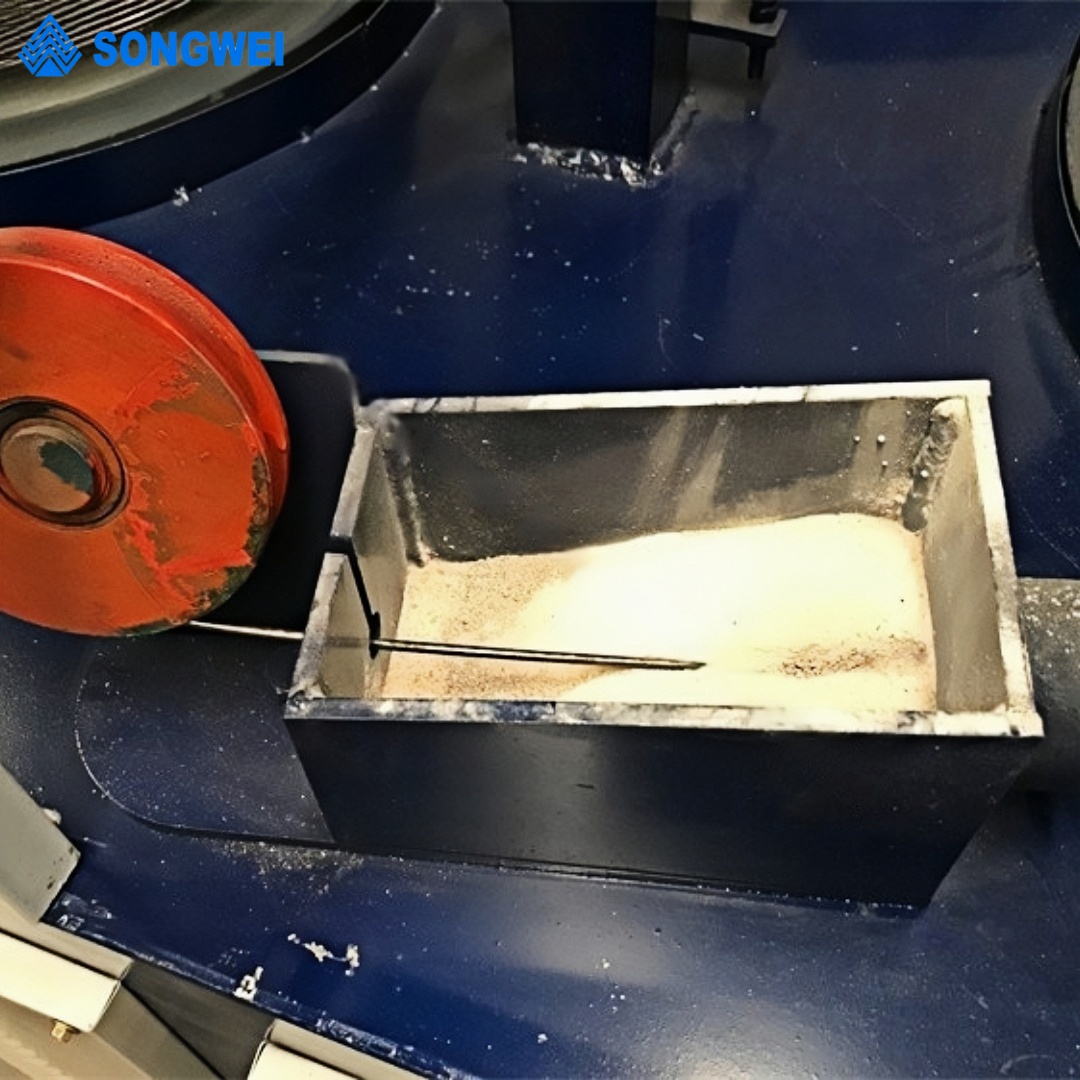

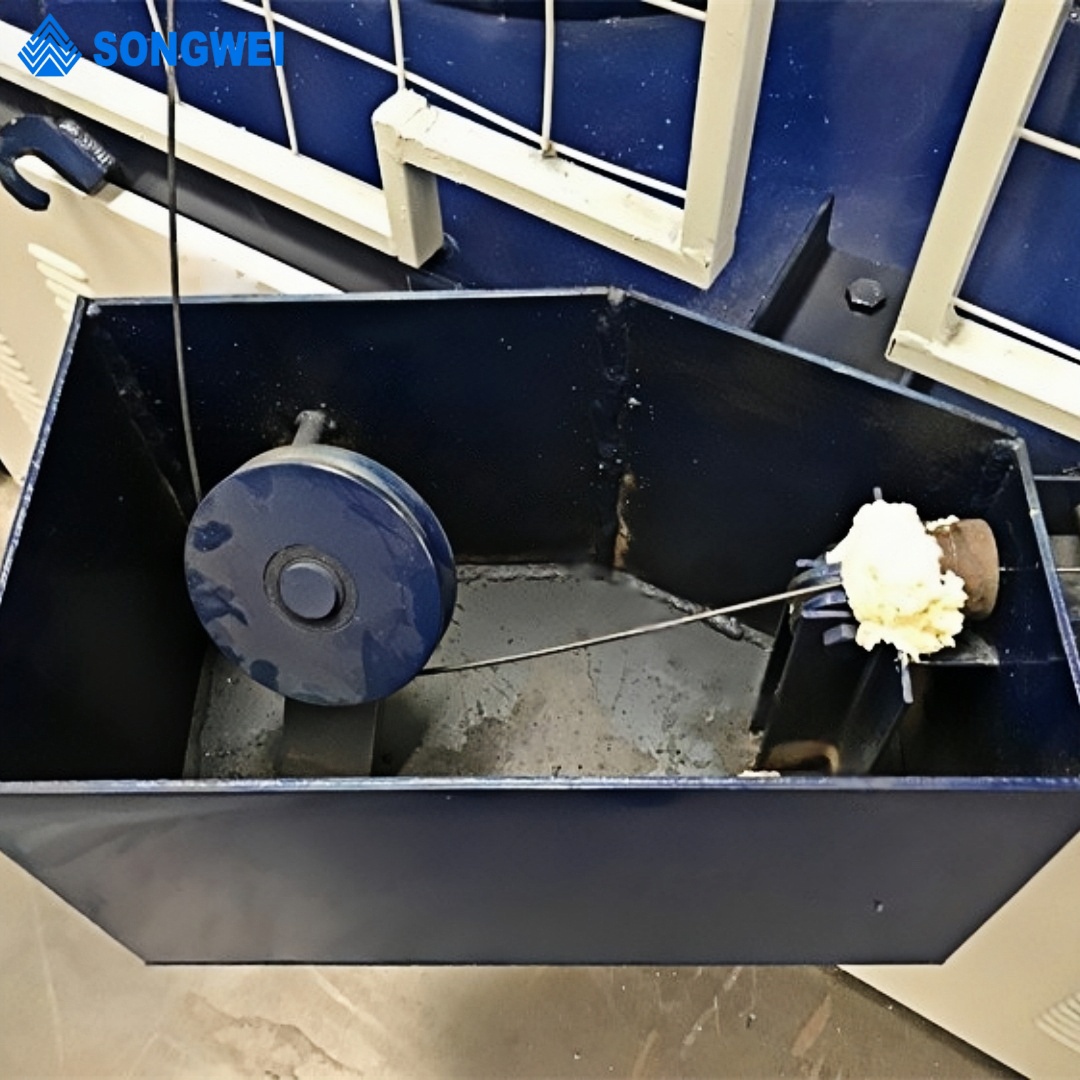

Mold box

Our mold box can be designed according to the customer's mold size, making it convenient to use.

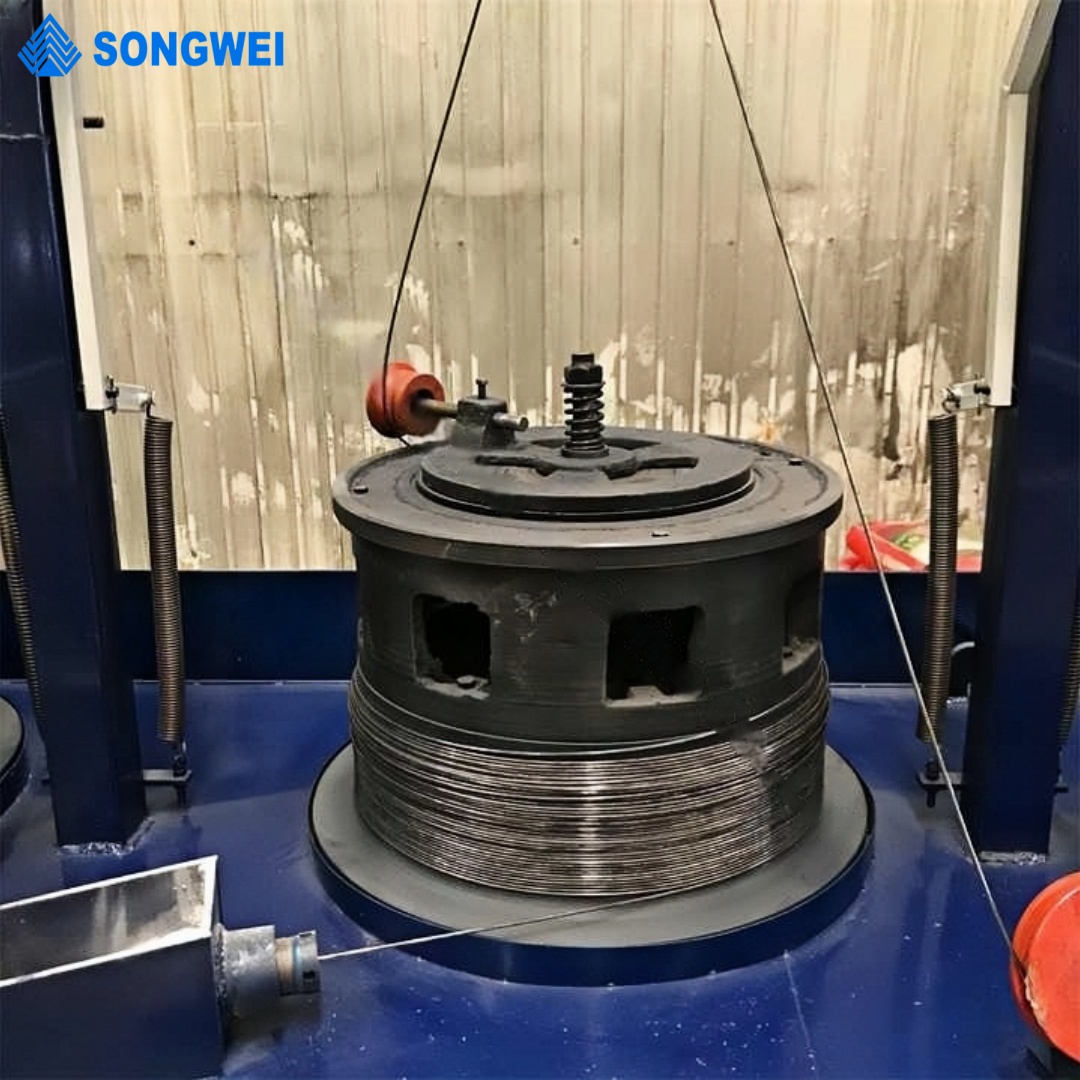

Drum

The drum is sprayed with cast steel, which can effectively prevent grooves caused by long-term use of the drum and extend the mechanical service life.

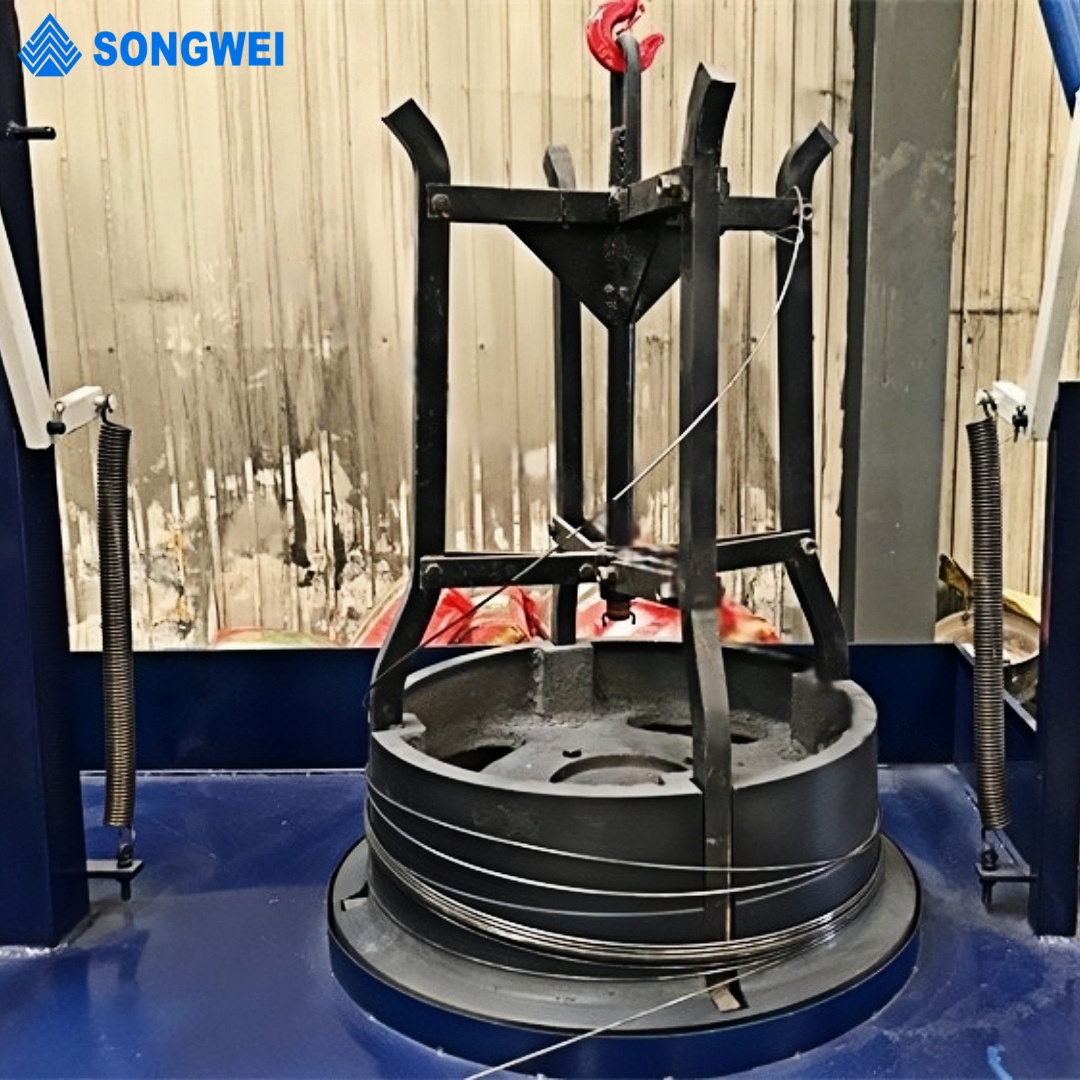

Wire take-up drum

The machinery adopts a vertical type take-up drum, and we can also design independent wire take-up systems: trunk wire take-up machines and spool take-up machines.

H1d93ee945b144d6aacb78a30281afaa6m Vulnerable parts

We use special alloy steel materials for vulnerable parts in machinery. Ensure long-term operation of the machinery.

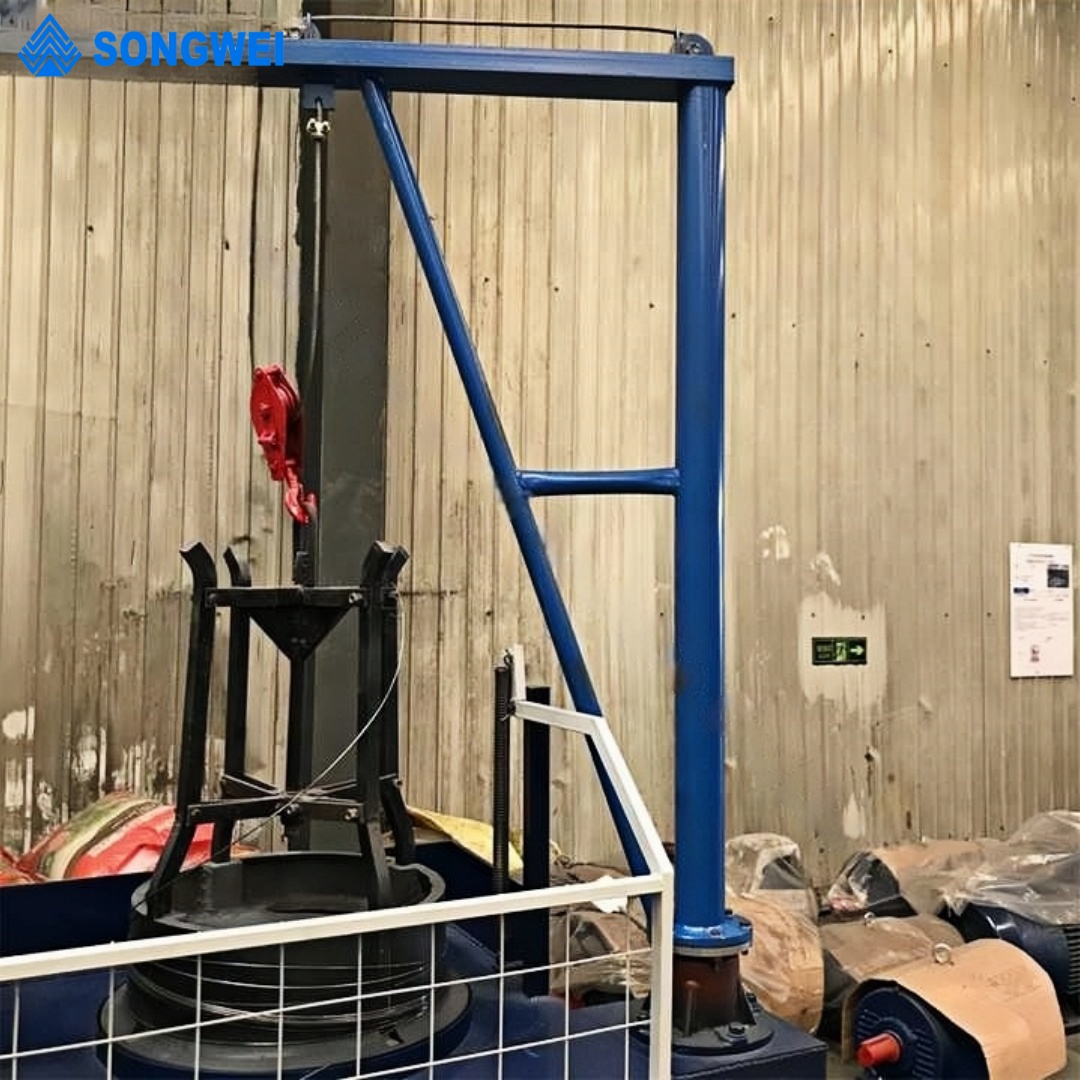

Wire crane

The machinery is equipped with a wire crane, which can carry a weight of up to 350 kg of wire, making it easy to remove and package the completed wire. Save time.

Small water tank

The last drum of the machine is equipped with a small water tank, which can clean the wire and facilitate the subsequent process.

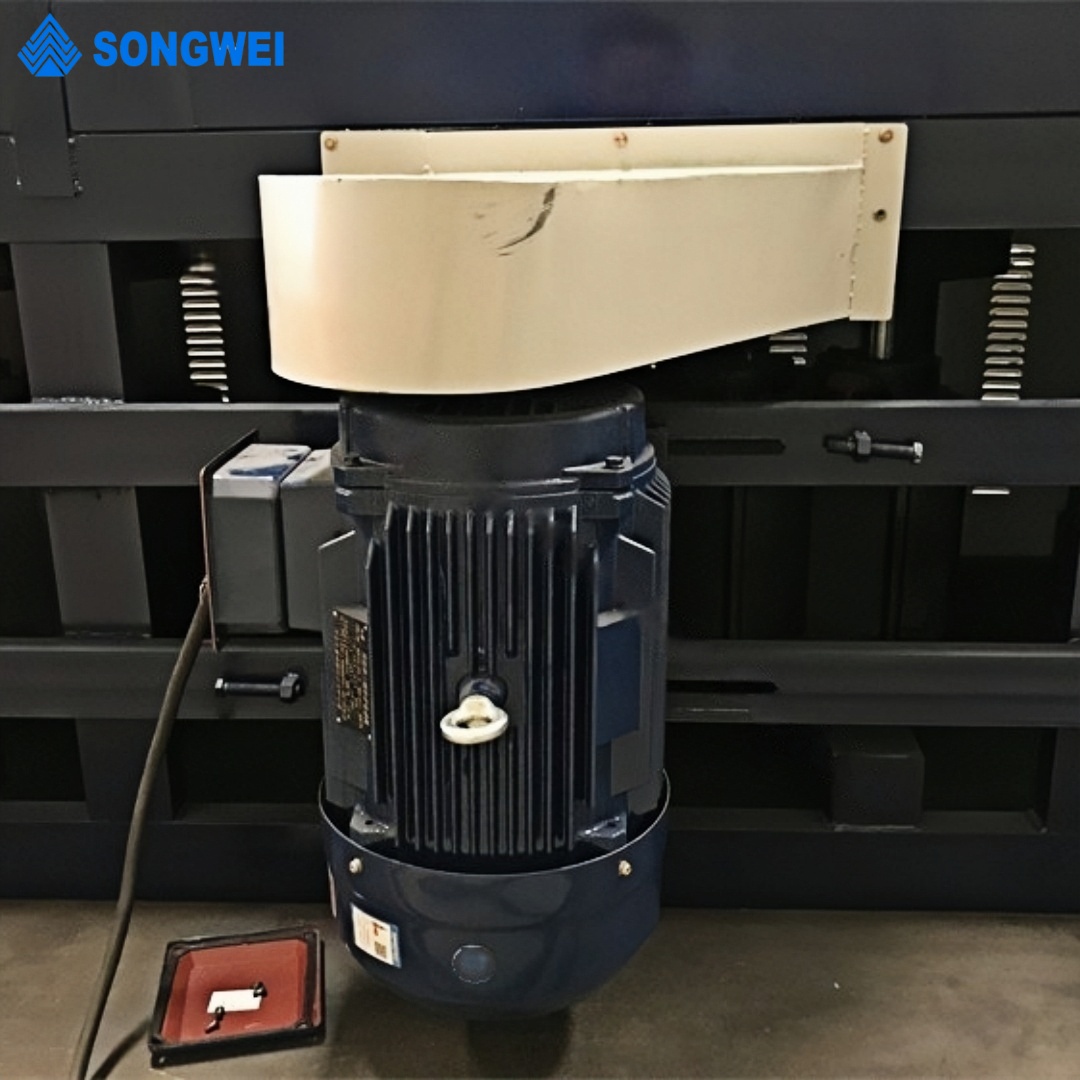

Motor

The motor adopts a well-known Chinese brand with guaranteed quality, and we can also use the motor brand specified by the customer.

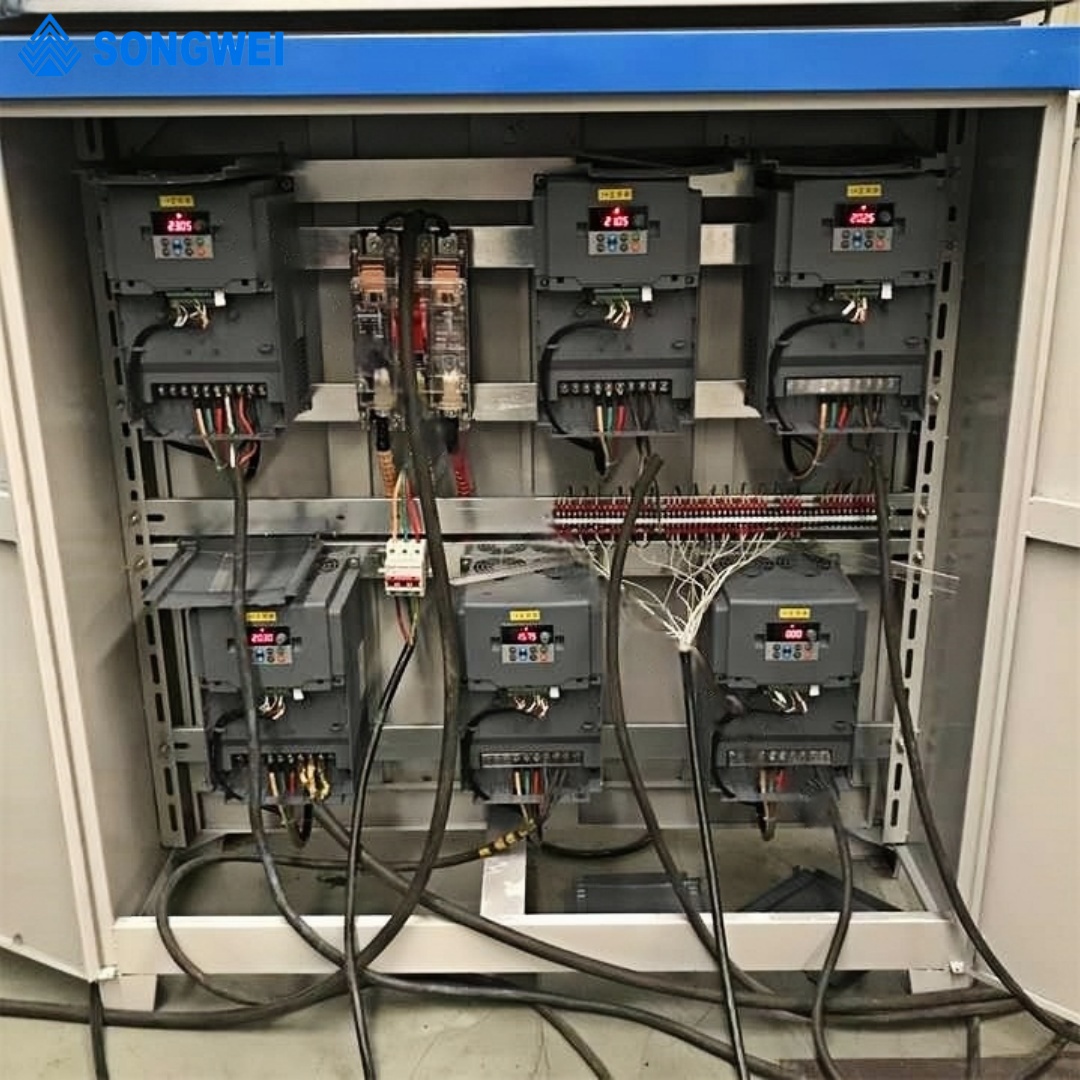

Inverter

Each drum is equipped with a frequency converter, which allows customers to adjust the mechanical speed, saving time and electricity.

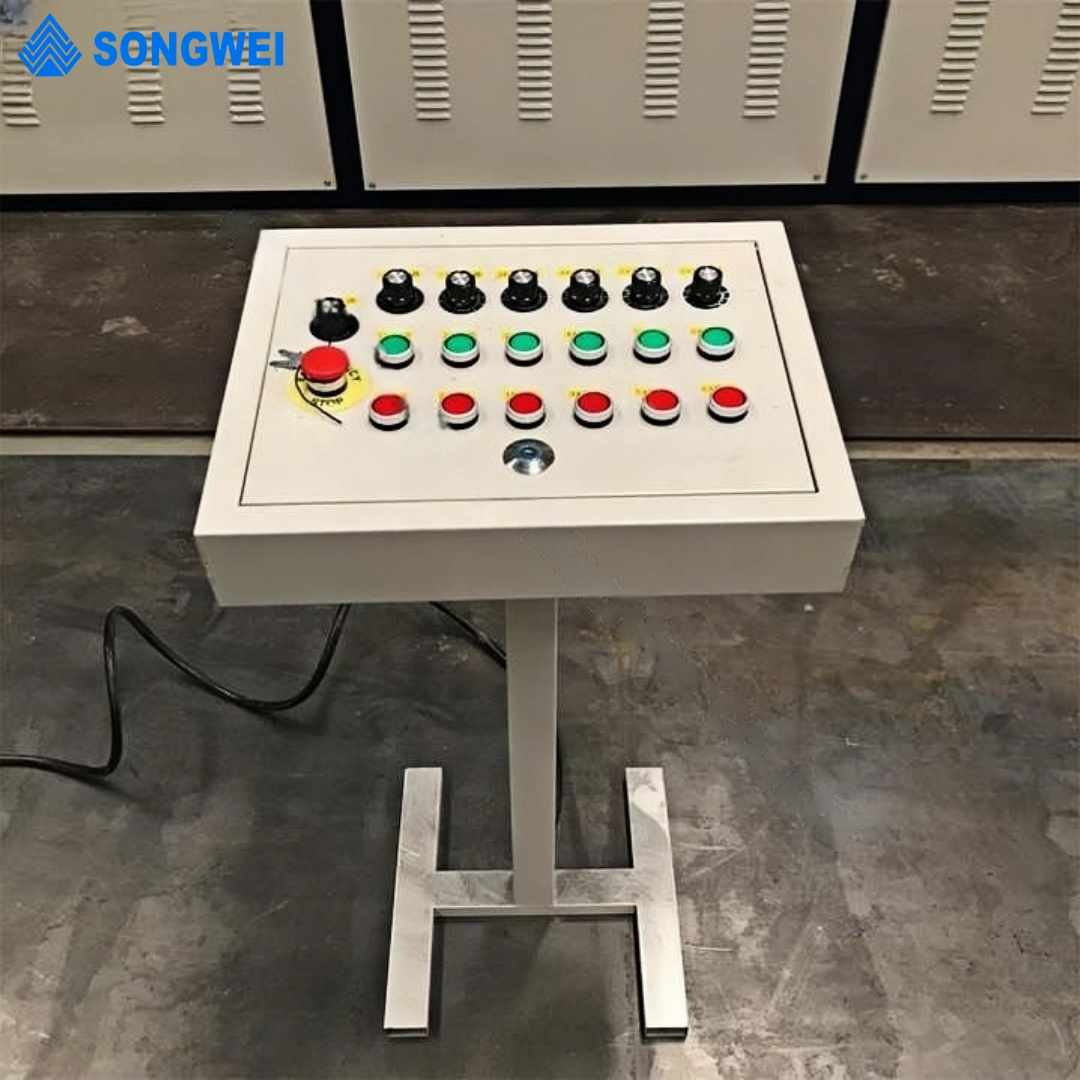

Control box

The mechanical control is simple and flexible, and the control box can be placed in any convenient position.

Our Services

1. We not only provide customers with excellent solutions, related equipment and perfect services for steel wire production lines, but also provide customers with free technical services for steel wire production lines.

2. If you are in the production of steel wire or have any questions about the steel wire production line, please feel free to contact us Our solution and quotation will be sent to you soon with your special requirements.

3. Welcome to visit our factory and wire drawing line.

4. Engineers who can serve overseas machinery, free training on how to install and use machines, online support.

5. The cost of continuing maintenance after the warranty period expires is low.

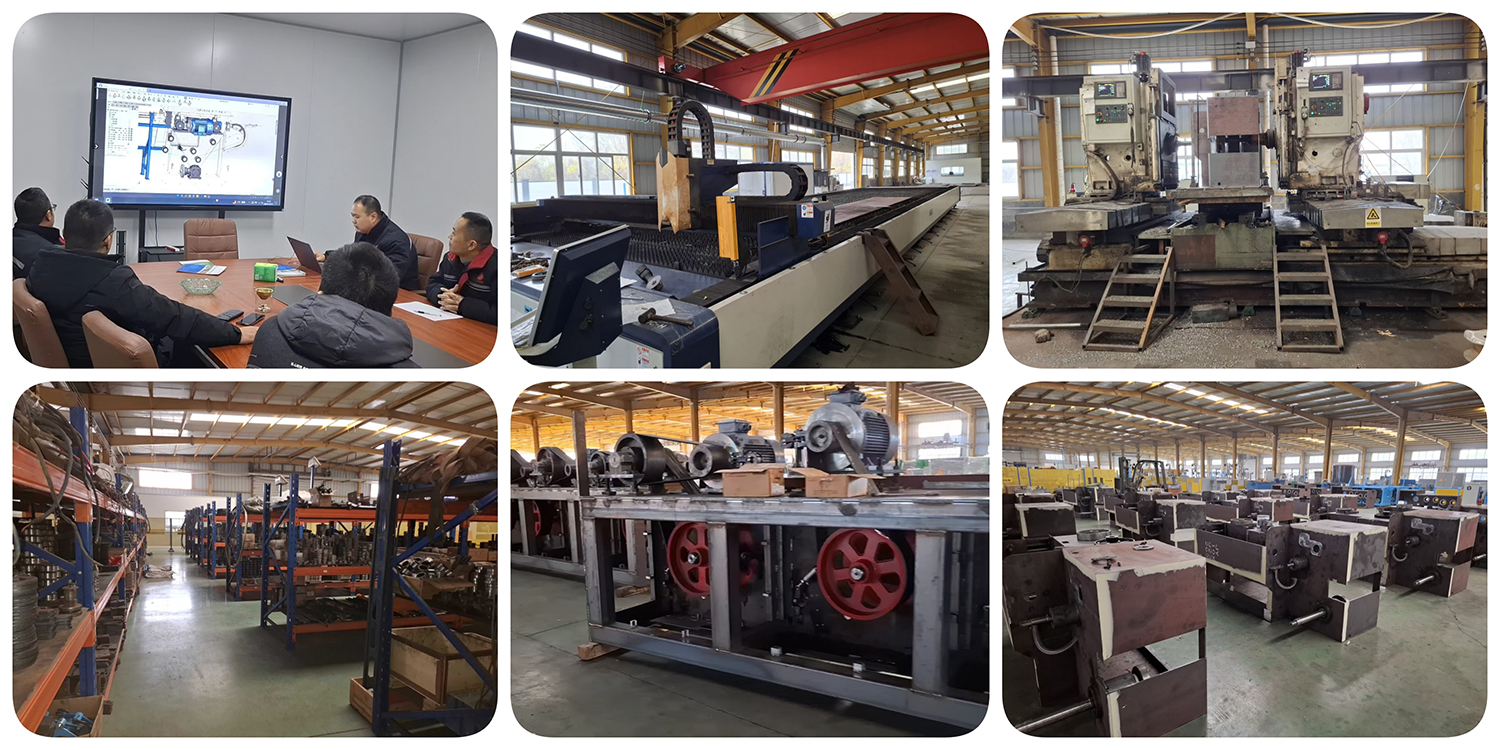

Plant Equipment
