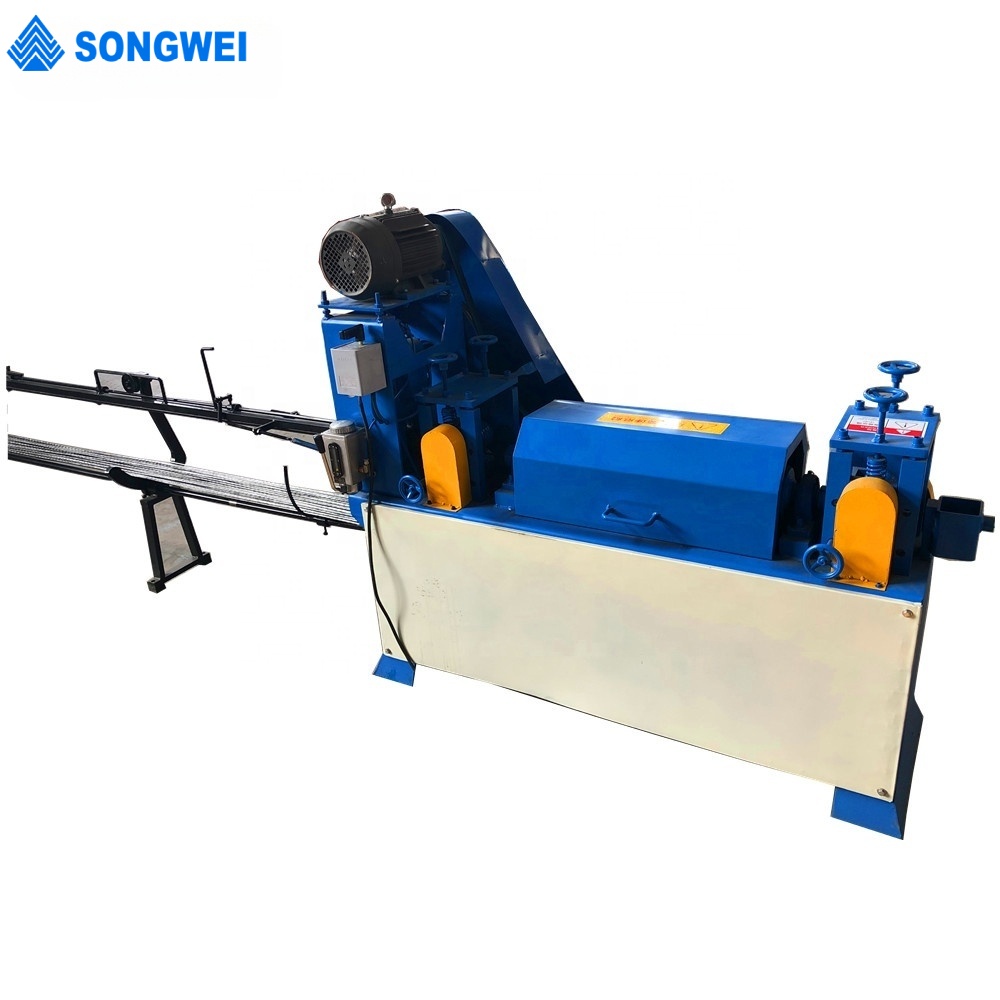

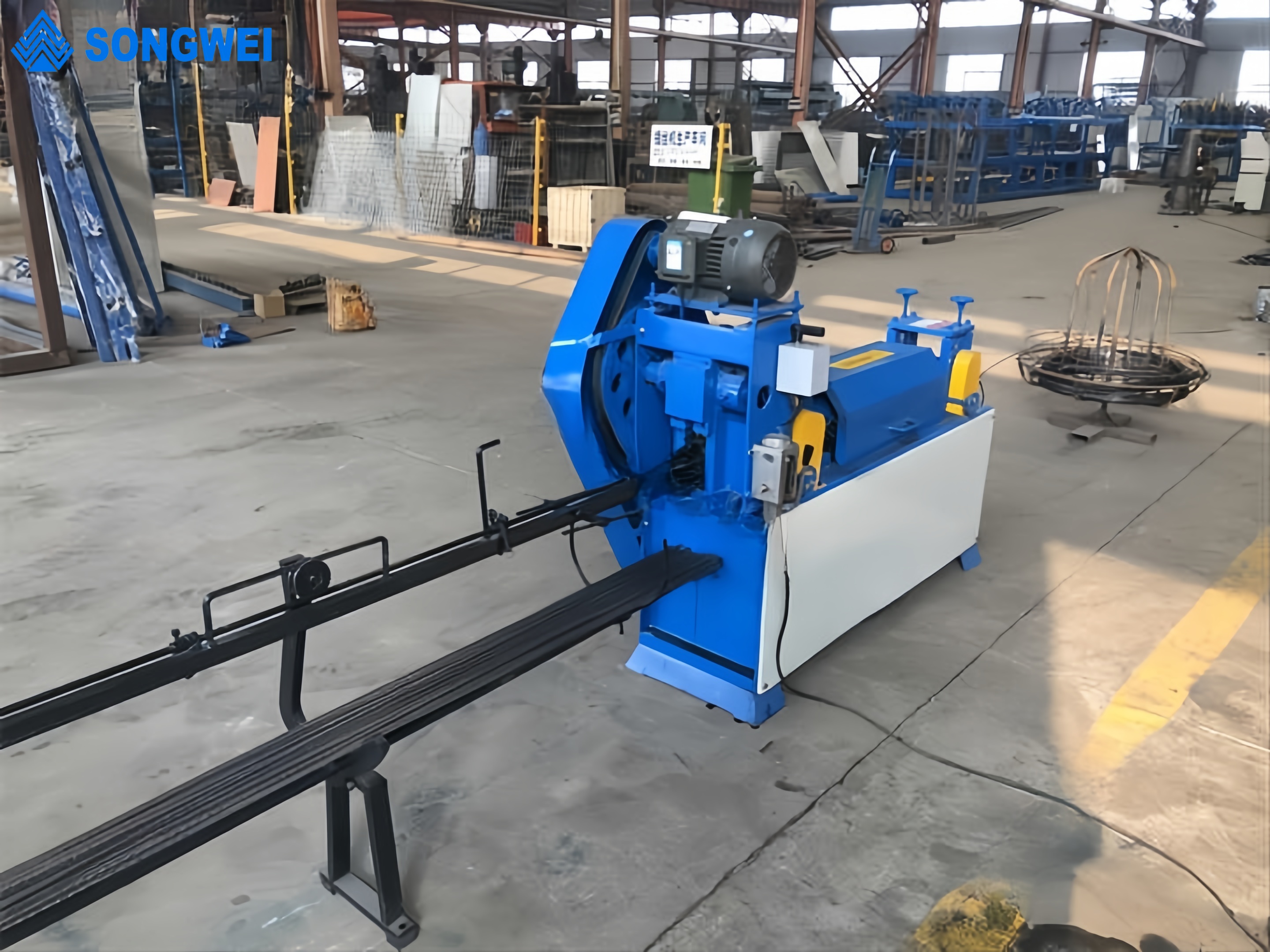

Automatic Steel Wire Straightening and Cutting Machine for 4-8 mm

Availability:
Quantity:
Product Description

Description of machine


➤➤ Application: Wire Straightening and Cutting Machine is specially used for automatically straighten stainless steel wire, galvanized wire, aluminum wire, cooper wire, and cut automatically according to the preset length.


➤➤ Material: Stainless steel wire, alloy steel wire, low/middle/high carbon steel wire.


The straightening machine is composed of a frame, a straightening mechanism, a feeding mechanism, a cutting mechanism, a linear gun and a wire frame.


The straightening part is composed of a straightening shaft, a straightening pressing block and two bearing blocks to complete the straightening work of the wire, the power is the motor mounted under the machine frame, and the straightening shaft is rotated at a high speed by the triangular tape.

1 (2) 1 (11) 1 (6)


Mechanical advantage

1✫ Adopt the totally enclosed type case, featured with high security.
2✫ Adopt cartridge valve, featured with compact structure and convenient adjustment.
3✫ The oil-way controlling part is hidden under the panel which can resist dust effectively.
4✫ The feed inlet adopt rotary scuff sleeve, featured with simple structure and easy change.
5✫ Part of the funnel structure was closed which is convenient for dust-cleaning.
6✫ The structure of the cradle is more reasonable, as well as new appearance.
7✫ The straightening motive power came from the large power motor which can ensure a long time stable operation.
8✫ The installation of traction and straightening motive power adopt adjustable structure, which is easy to maintain.


Product Parameters


Model

SW3-5

SW5-8

Wire diameter

3-5 mm

4-8 mm

Cutting length

≤3000 mm   (Customizable)

≤3000 mm   (Customizable)

Cutting error

±1 mm

±1 mm

Cutting speed

20-40 m/min

20-40 m/min

Straightening accuracy

≤1 mm

≤1 mm

Motor power

2.2 kW+0.75 kW

3.0 kW+1.5 kW

Weight

350 kg

480 kg

Mechanical dimension 4800 mm*800 mm*1200 mm 5800 mm*800 mm*1200 mm

Note:We can design the scheme for you according to your requirements.



Machine details


1 (13)

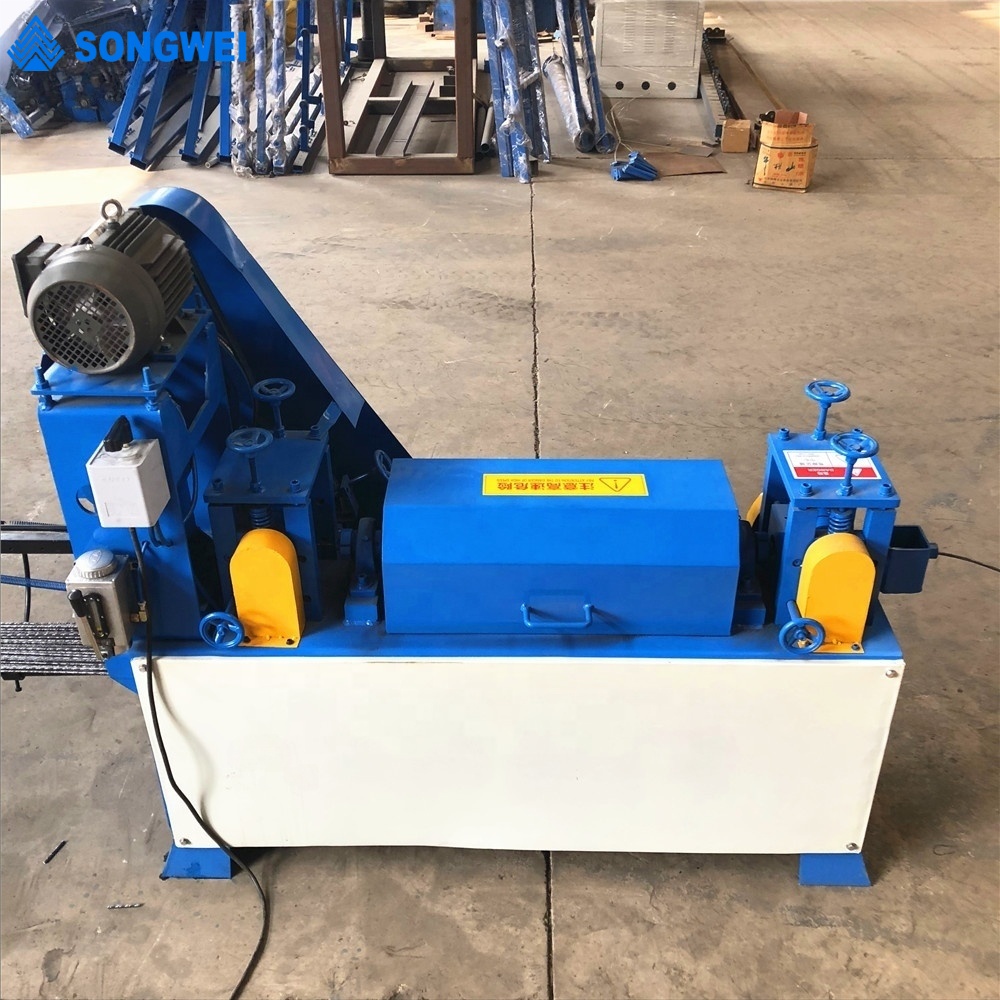

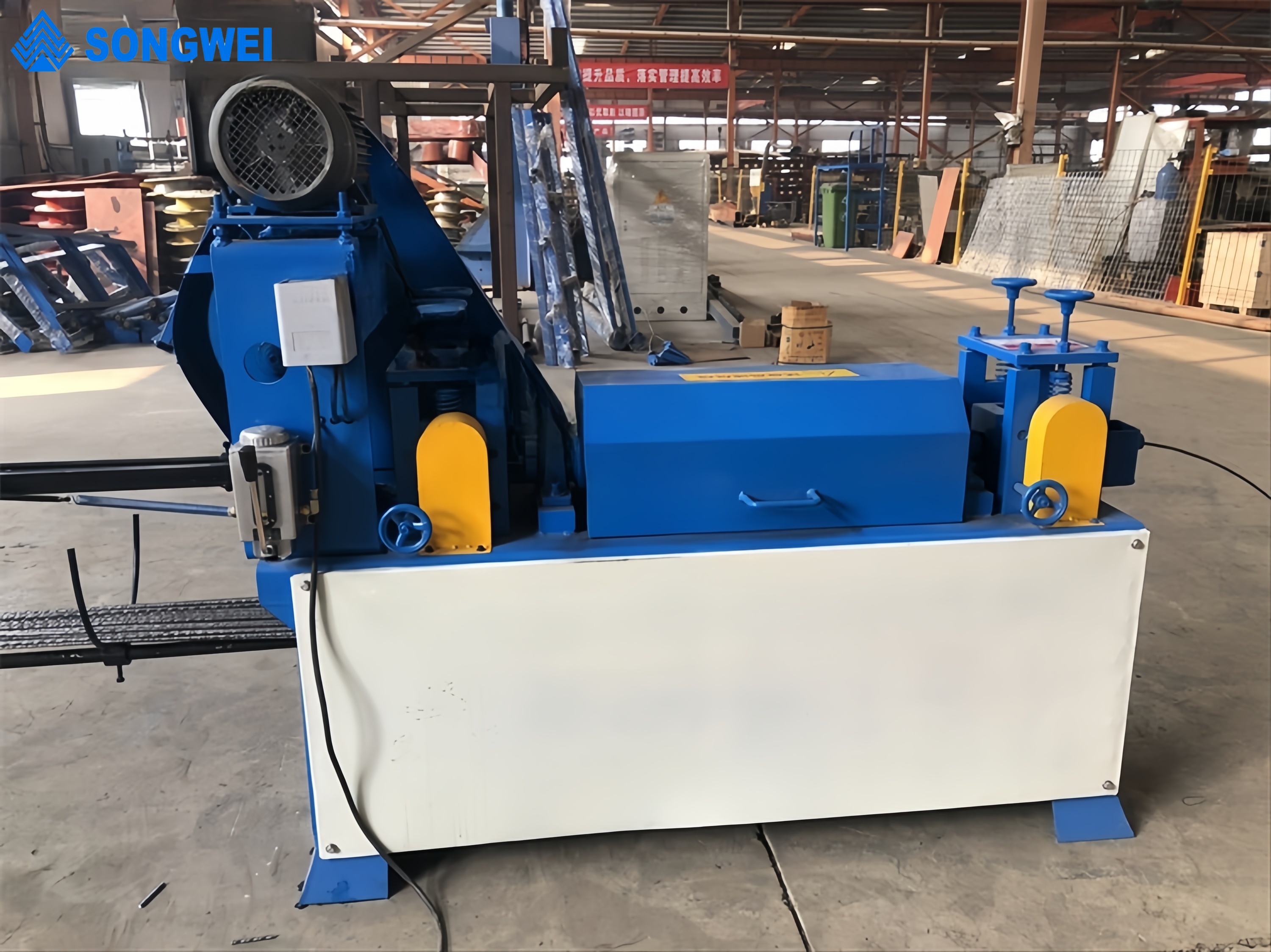

Mechanical structure

Mechanical structure adopt the totally enclosed type case, featured with high security.Simple and elegant appearance.

1 (2)

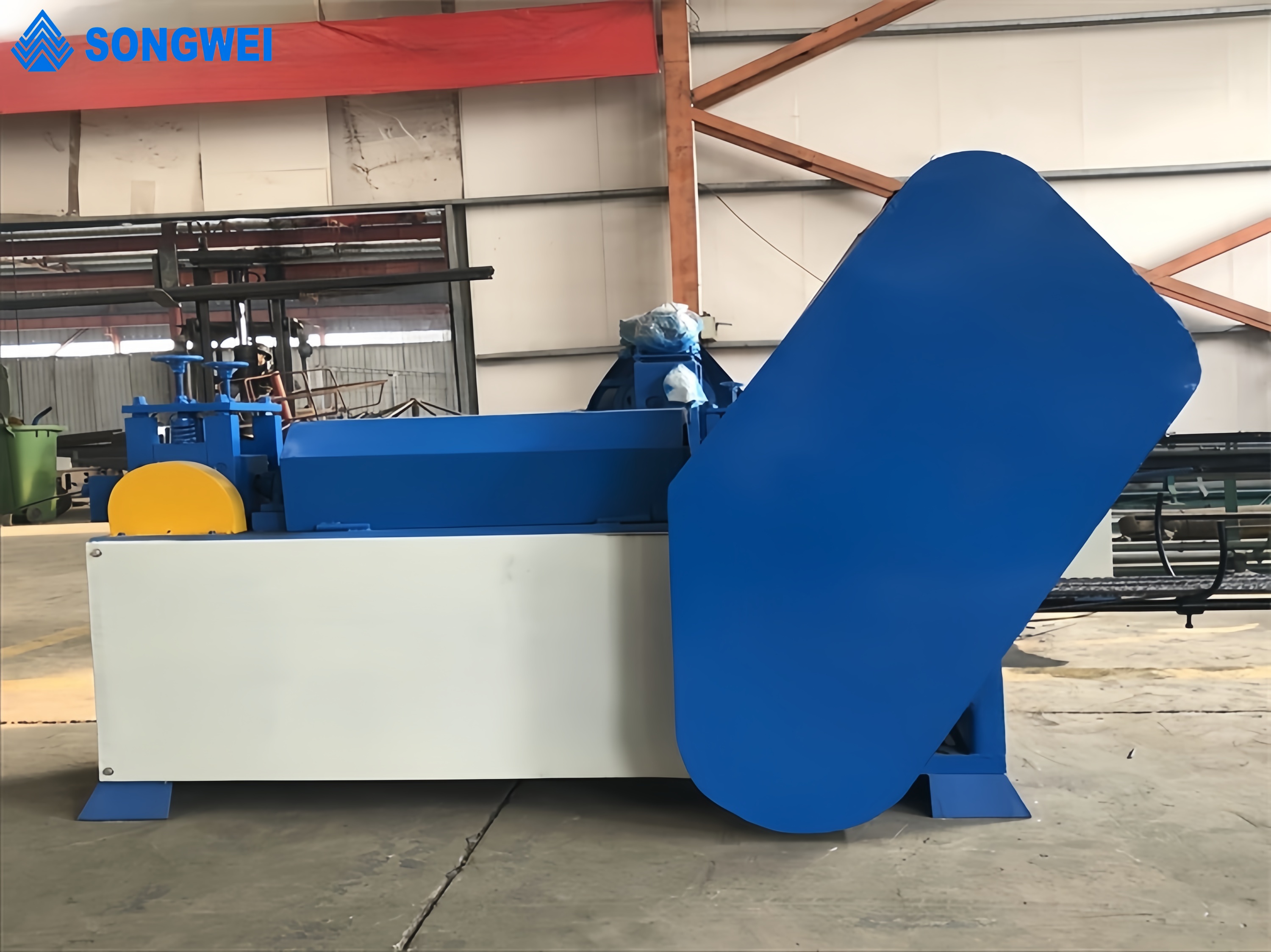

Protection cover

High speed parts of machinery will be covered with protective cover to ensure the safety of employees.

1 (7)

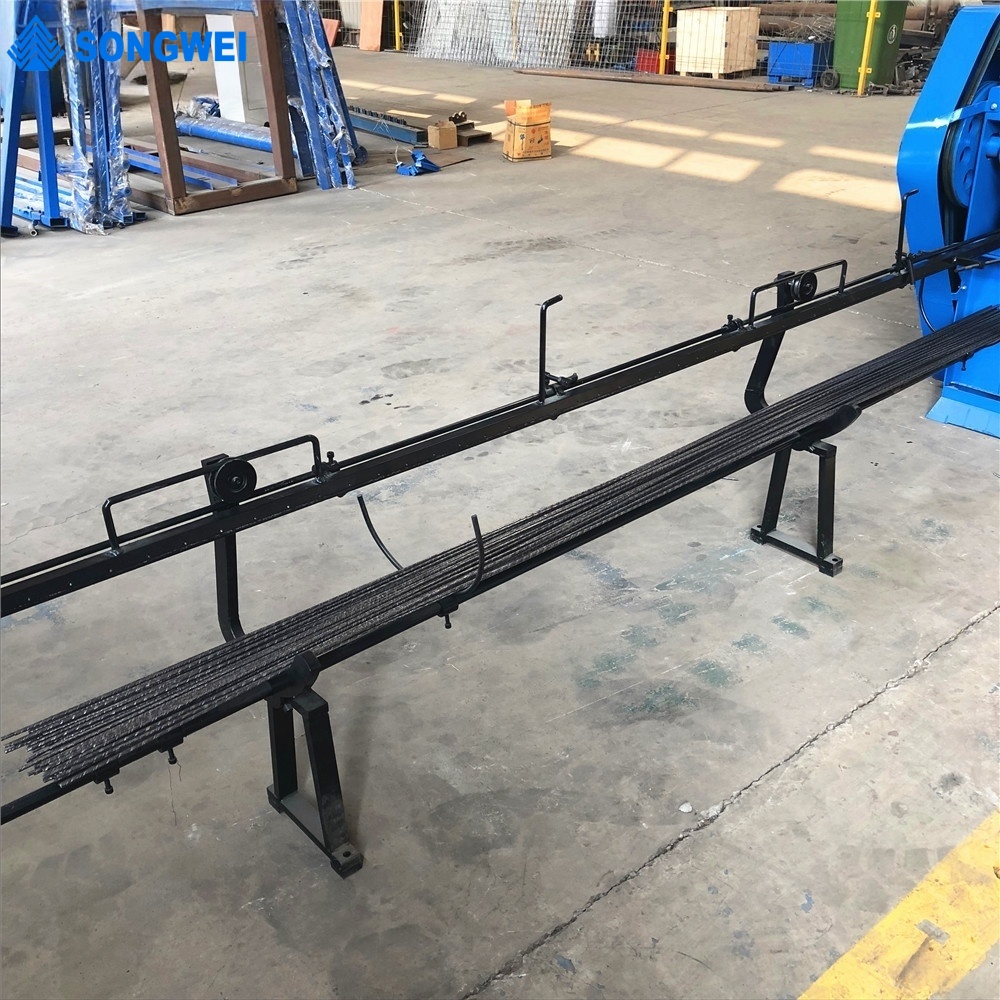

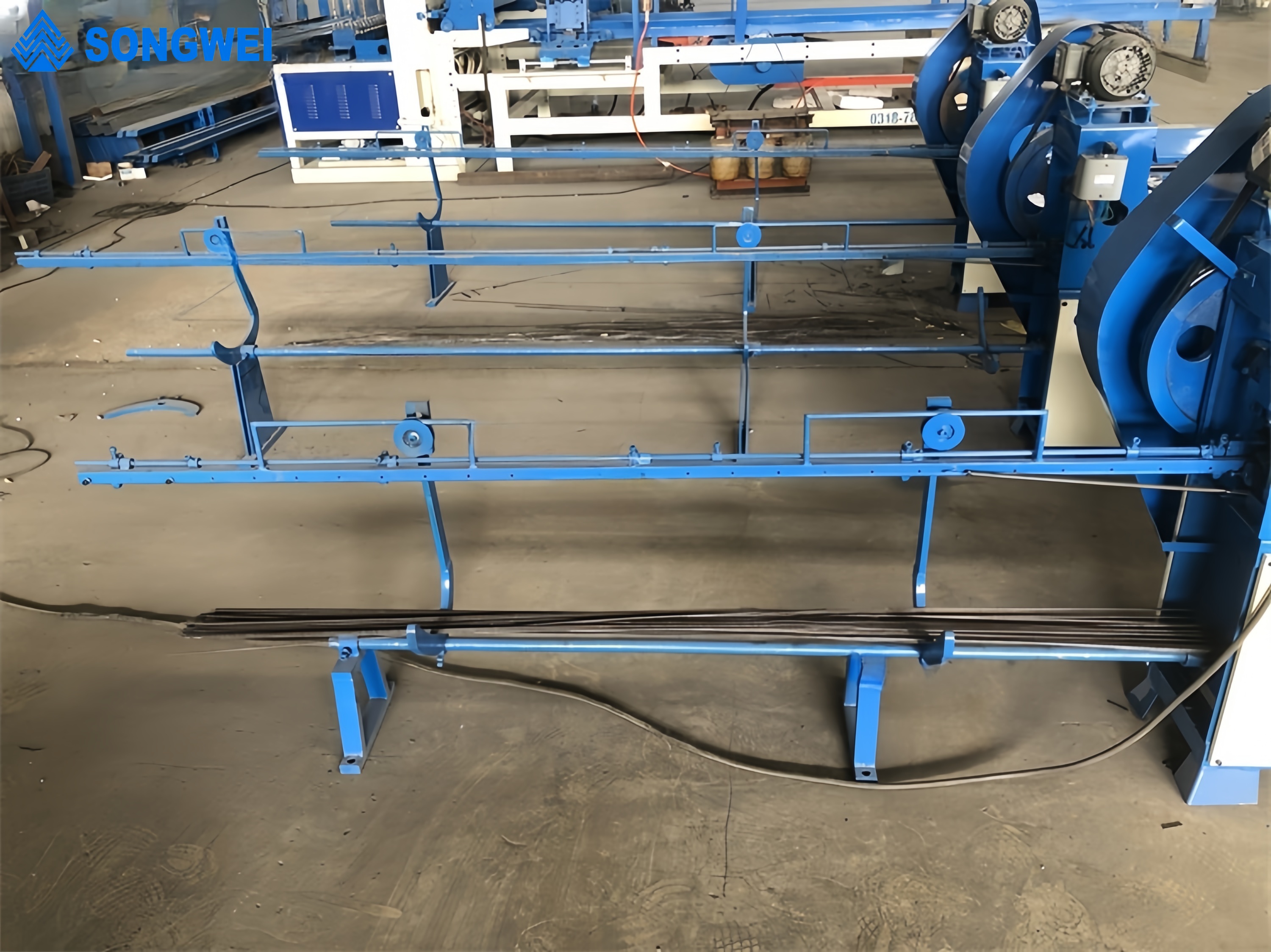

Wire rack

The rack adopts cartridge valve, which is easy to adjust. The length of wire straightening can be changed freely.

1 (10)

Wire casing

Each machine has 3 slots to choose from. It is convenient for us to use the appropriate wire diameter.

1 (1)

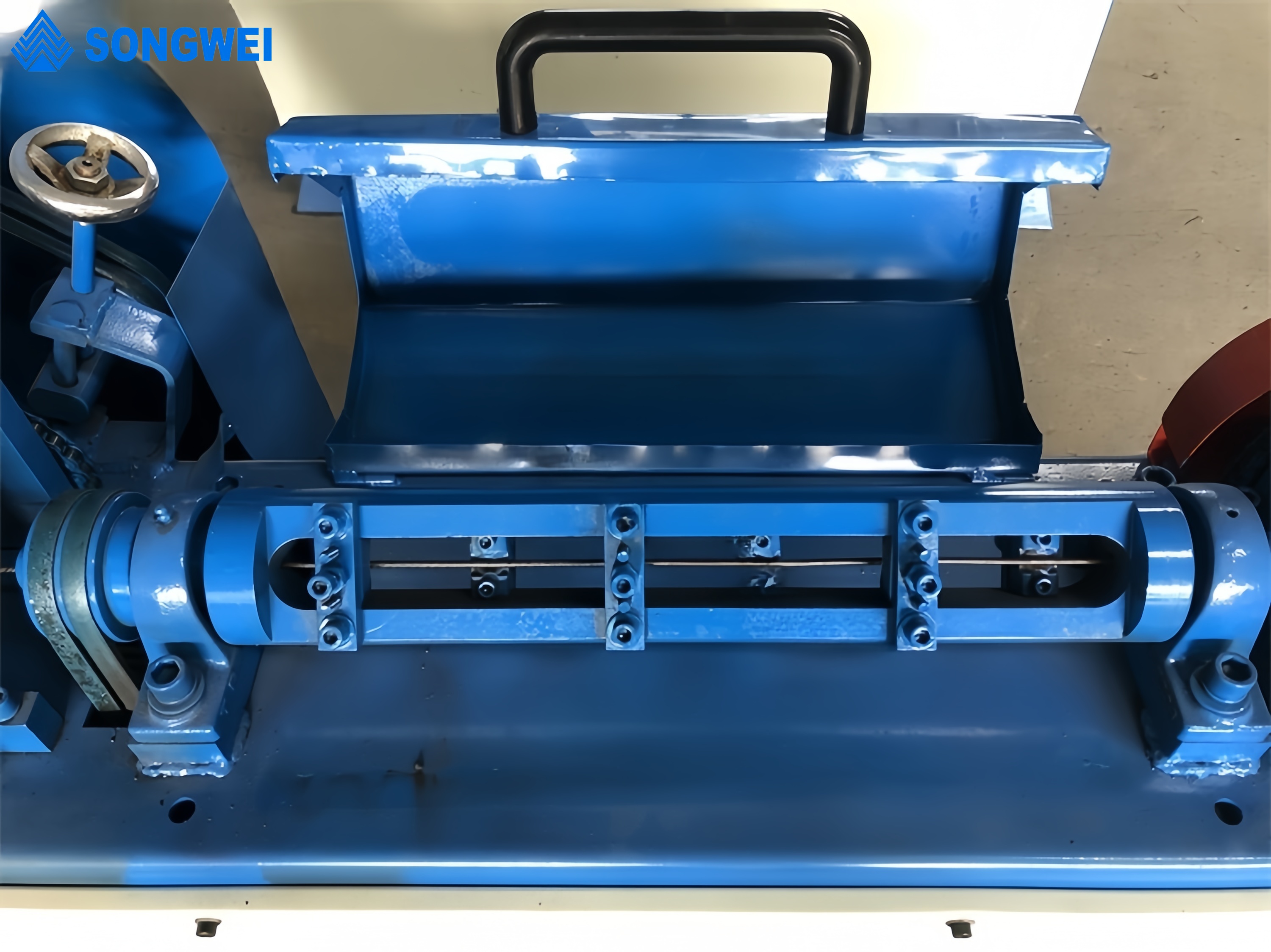

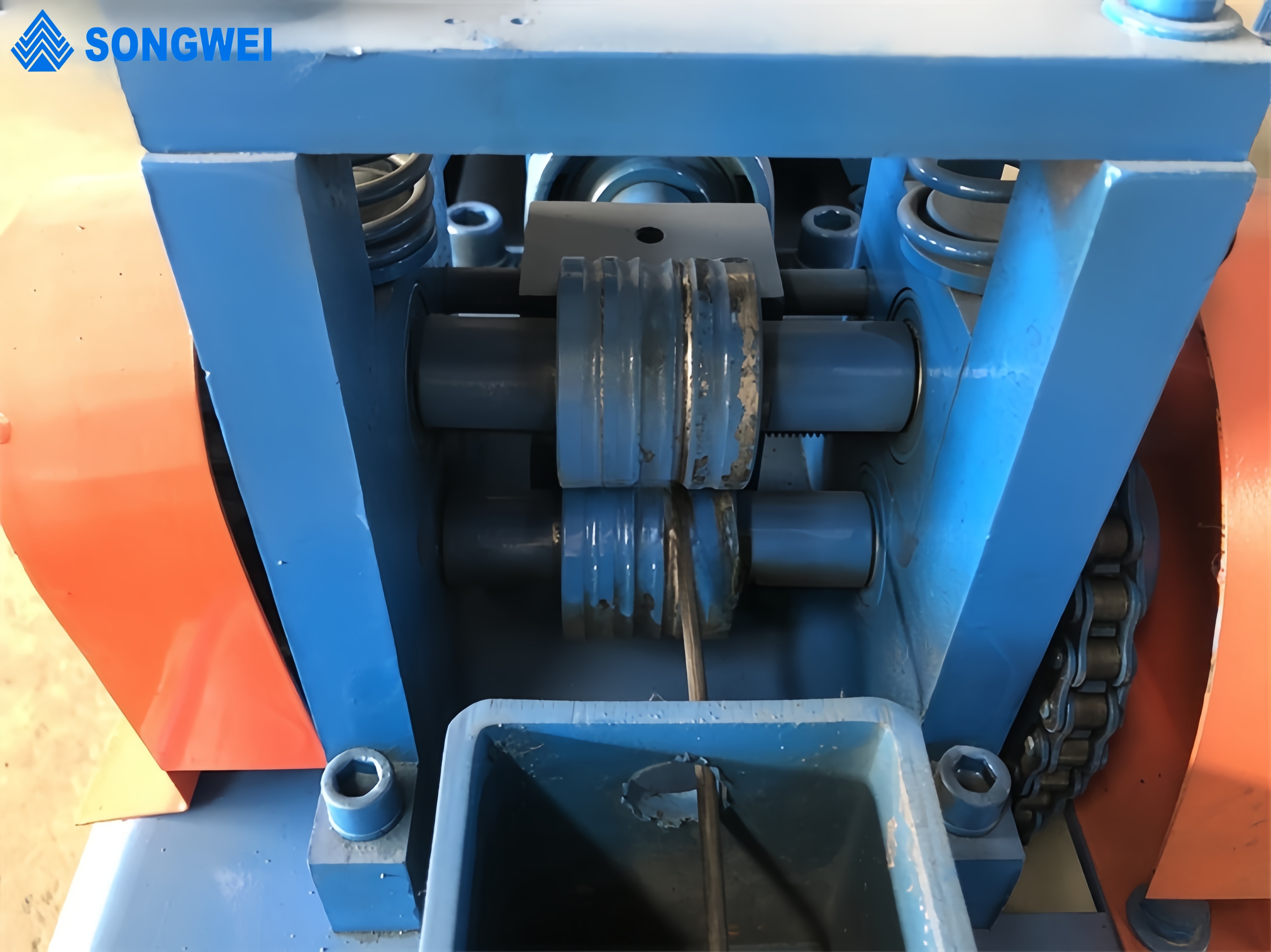

Straightening system

The straightening system adopts special design, precision machining accuracy is very high, and it is easy to adjust the mold.

1 (3)

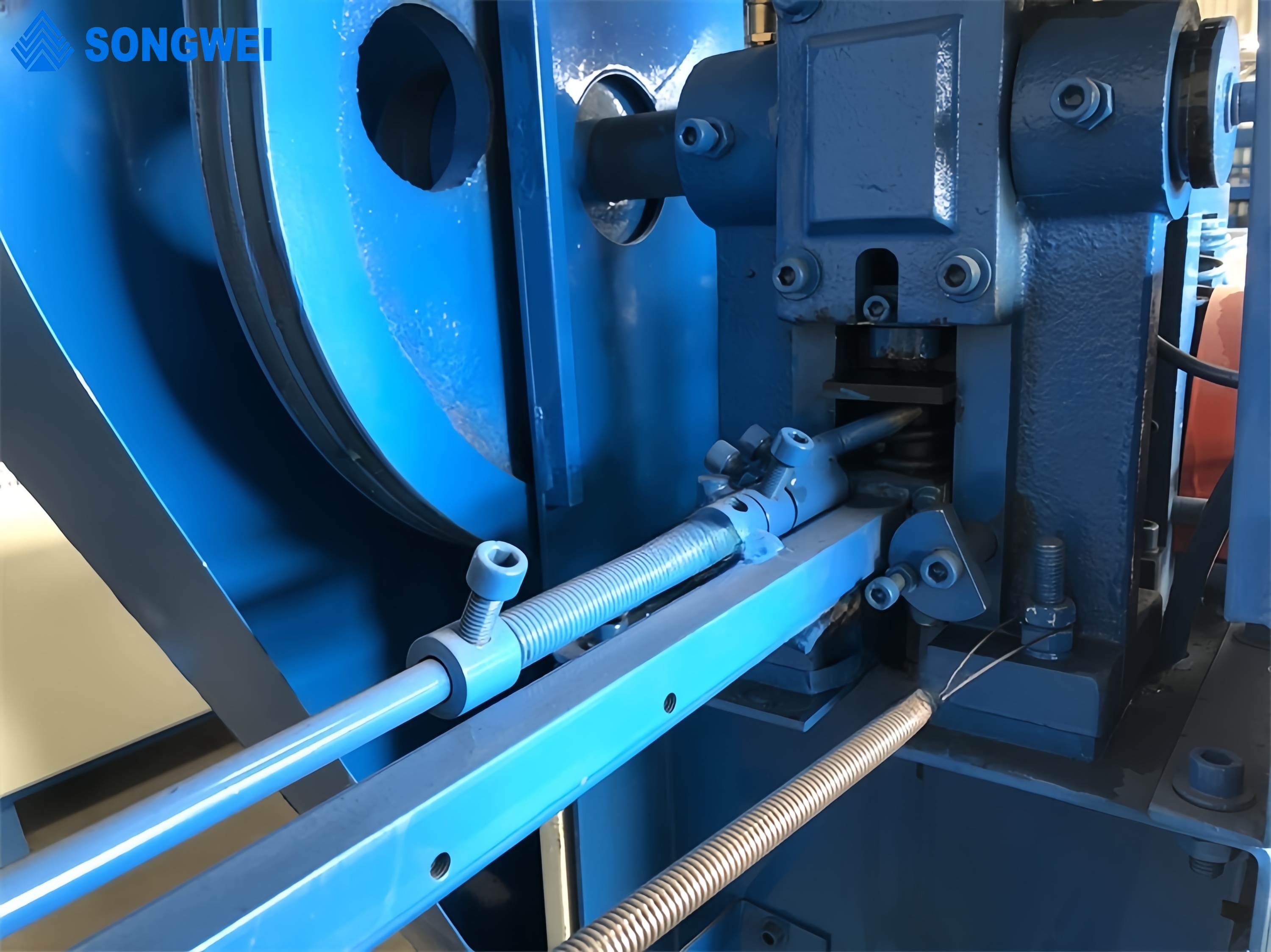

Wire crane

The cutter is made of special alloy with high hardness and durability.

Our Services

1. We not only provide customers with excellent solutions, related equipment and perfect services for steel wire production lines, but also provide customers with free technical services for steel wire production lines.

2. If you are in the production of steel wire or have any questions about the steel wire production line, please feel free to contact us Our solution and quotation will be sent to you soon with your special requirements.

3. Welcome to visit our factory and wire drawing line.

4. Engineers who can serve overseas machinery, free training on how to install and use machines, online support.

5. The cost of continuing maintenance after the warranty period expires is low.
