Inverted Integrated Wet Wire Drawing Machine

Availability:
Quantity:
Product Description

Product Introduction

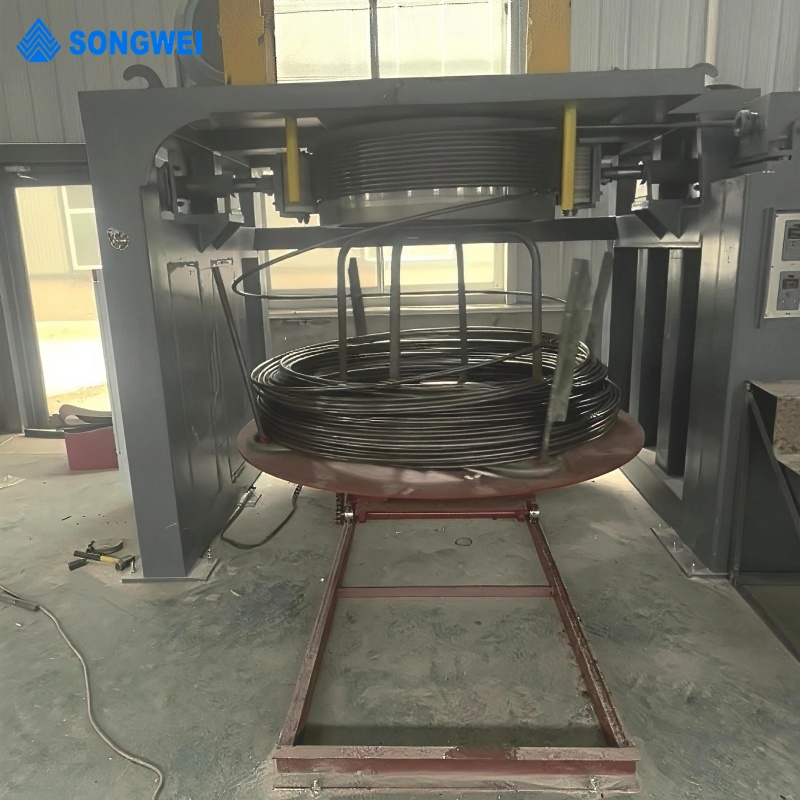

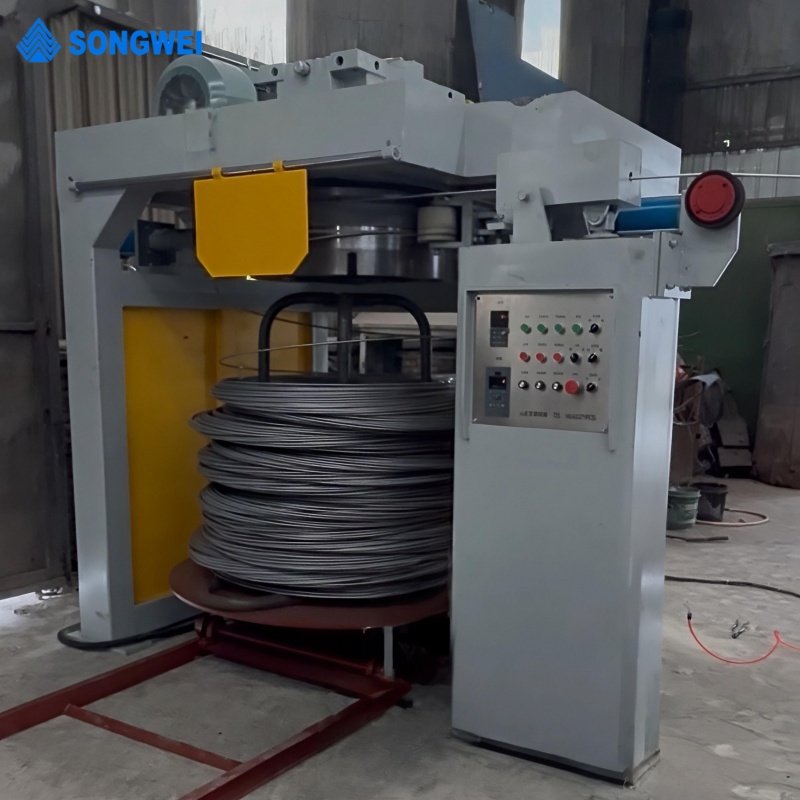

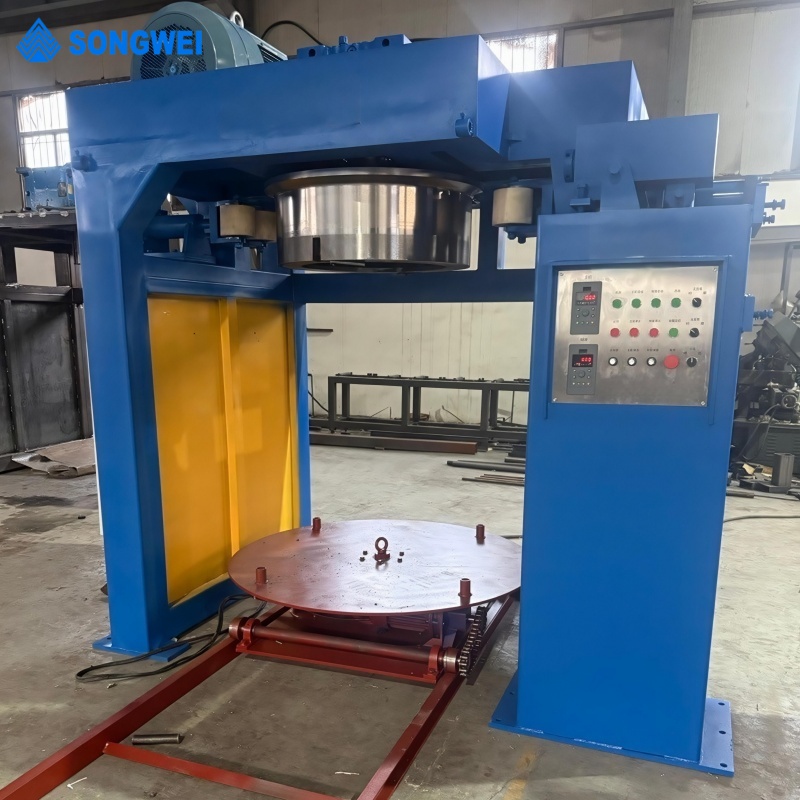

倒立式 (3) 倒立式 (2) 倒立式 (1)


The inverted wire drawing machine is a processing equipment specifically designed for large-coil-weight, coarse-diameter metal wires, integrating drawing and diameter reduction with take-up functionality.

It is suitable for high-strength, large-wire-diameter industrial applications.


Quality Assurance

1. The inverter, PLC, and low-voltage components are guaranteed for one year (from commissioning) or 18 months (from factory).

2. The motor and sensor are guaranteed for one year (from factory).

3. The tower wheel coating is guaranteed for three years and replaced with a new one if damaged.

4. The mechanical parts are guaranteed for one year (from commissioning).


Product Parameters


Parameter

SW-DL-600

SW-DL-650

SW-DL-1200

Input Wire Diameter (mm)

2-4

5-12

12-35

Output Wire Diameter (mm)

1.8-3.8

4.5-11

11-34

Max. Line Speed (m/min)

60-80

40-80

20-40

Drum Diameter (mm)

600

650

1200

Main Motor Power (kW)

22

37

110

Take-up Capacity (kg)

600

1000

1000

Die Number

1

Mechanical Compression Rate

10%

Roller

Sprayed Tungsten Carbide

Power Control

Frequency Inverter

Transmission Method

Gear Reducer

Pay-off Method

Passive Coil Pay-off

Voltage (V)

200 V / 380 V / 400 V / 415 V / 480 V /   600 V

Bearing Type

Spindle: 40Cr Steel; Bearing Brand:   Renben

Brake

Pneumatic Disc Brake



Our Services

1. We not only provide customers with excellent solutions, related equipment and perfect services for steel wire production lines, but also provide customers with free technical services for steel wire production lines.

2. If you are in the production of steel wire or have any questions about the steel wire production line, please feel free to contact us Our solution and quotation will be sent to you soon with your special requirements.

3. Welcome to visit our factory and wire drawing line.

4. Engineers who can serve overseas machinery, free training on how to install and use machines, online support.

5. The cost of continuing maintenance after the warranty period expires is low.
