Product Introduction
 |  |  |
 |  |  |
1. Frame: Solid welded box structure, flat and vertical, rust-removed and stress-relieved to meet the needs of high-speed drawing.
2. Transmission system: Direct drive with variable frequency motor + 4-slot B-type belt + synchronous belt.

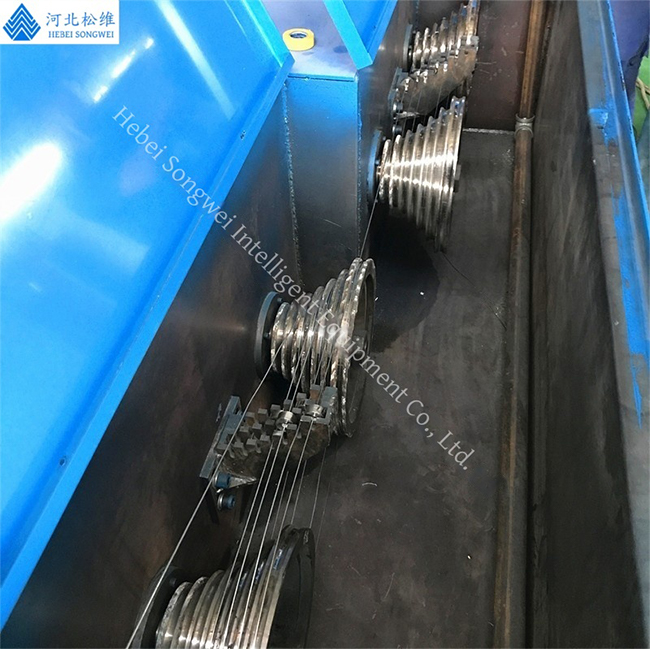

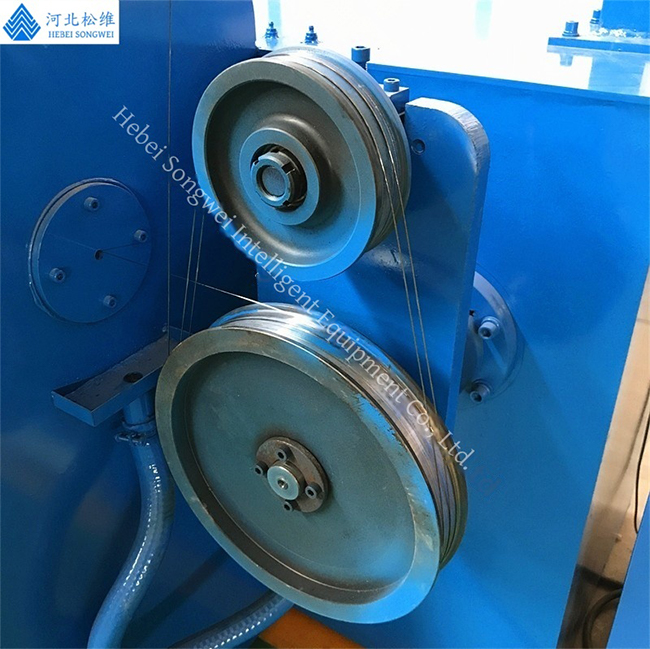

3. Tower pulley: integrally cast with 235b steel, inlaid with hard alloy (thickness ≥3.5 mm) on the surface, hardness HRC88-92.
4. Water tank: Three-layer waterproof design (mechanical seal, waterproof cover, skeleton seal) is adopted, and a leak is set to prevent water from flowing into the bearing.
5. Cooling: The wire drawing die is cooled by lubricating water, circulating cooling method, and overflow port is set.

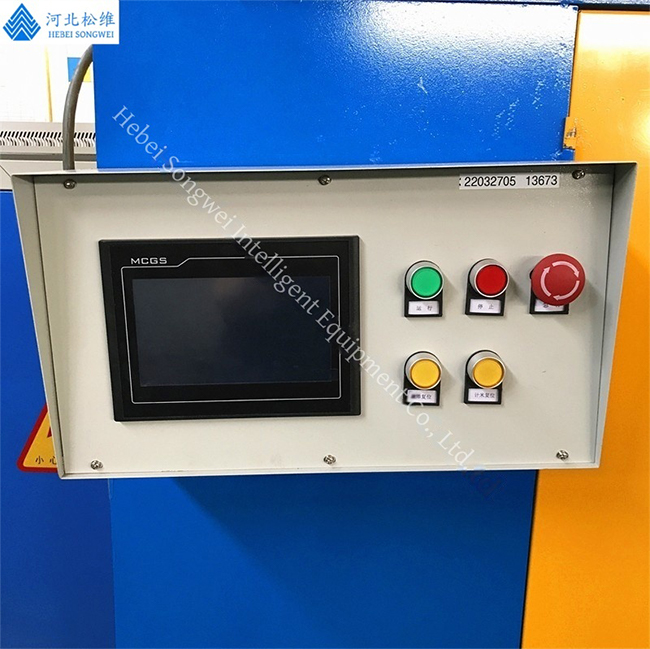

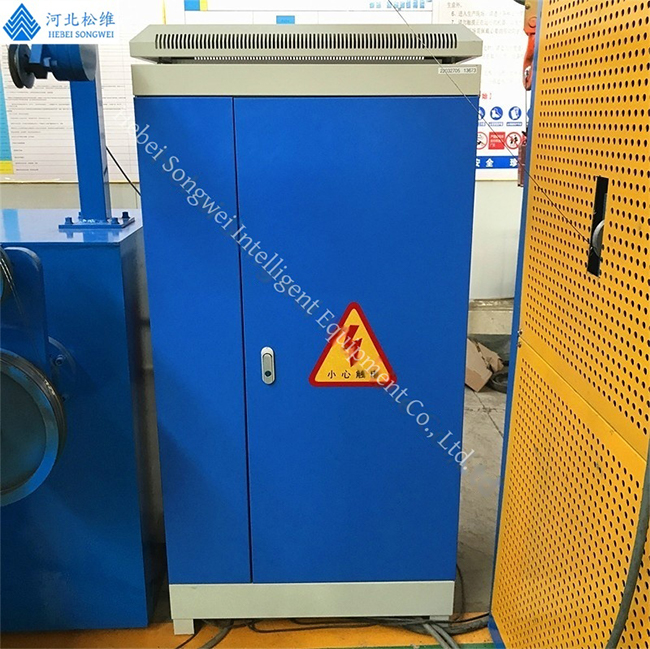

6. Machine: Electric and gas control buttons and instruments are set on the front, and the human-machine interface can set production parameters and query fault information.
7. Speedometer and meter: It has meter and speed meter functions, supports fixed-length drawing, preset length, automatic deceleration, and fixed-length parking.
Quality Assurance
1. The inverter, PLC, and low-voltage components are guaranteed for one year (from commissioning) or 18 months (from factory).
2. The motor and sensor are guaranteed for one year (from factory).
3. The tower wheel coating is guaranteed for three years and replaced with a new one if damaged.
4. The mechanical parts are guaranteed for one year (from commissioning).
Product Parameters

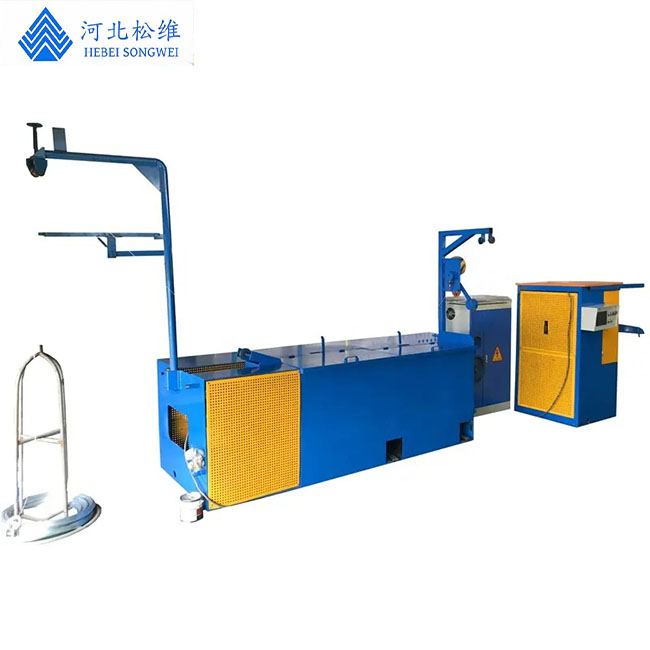

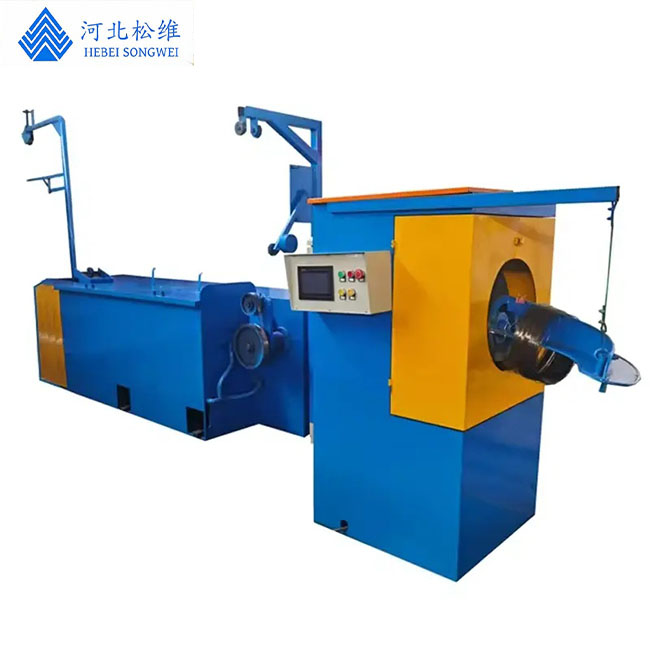

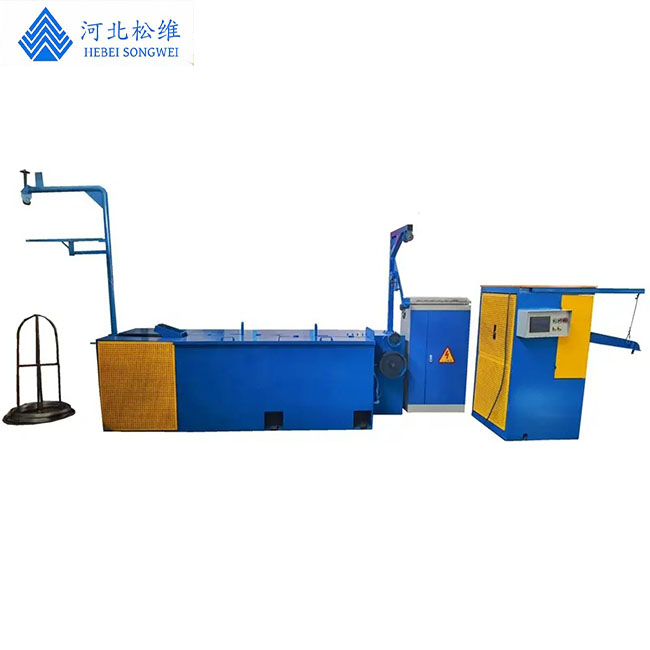

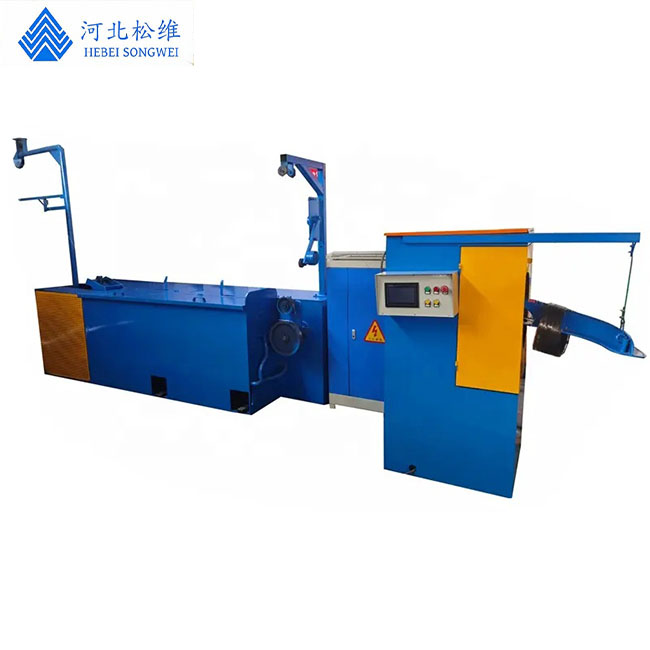

4 Tower Wheels 3.0-1.0 mm Wet Wire Drawing Machine | |
Inlet wire dia.（mm） | 2.0-3.0 |
Outlet wire dia.（mm） | 0.8-1.0 |
Max drawing speed (m/s) | 9 |
Die number | 16 |
Main machine power (kw) | 45 (Three-phase AC motor) |
Spooler power (kw) | 4 (Three-phase AC motor) |

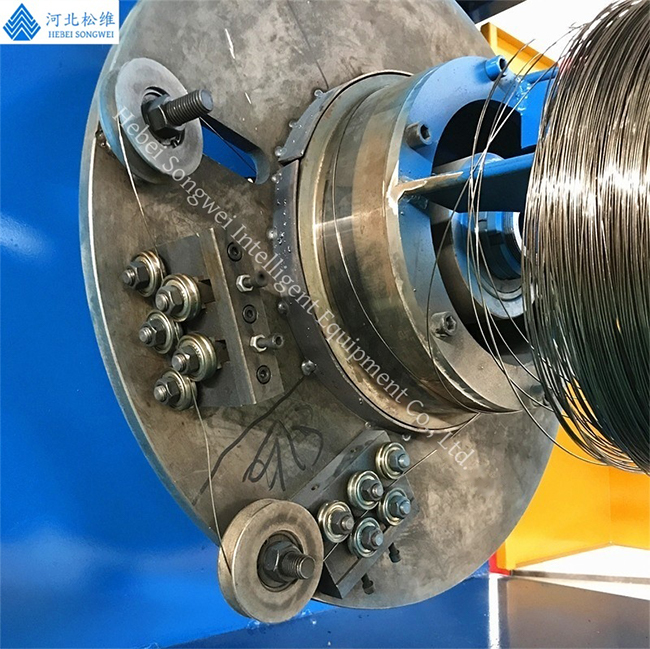

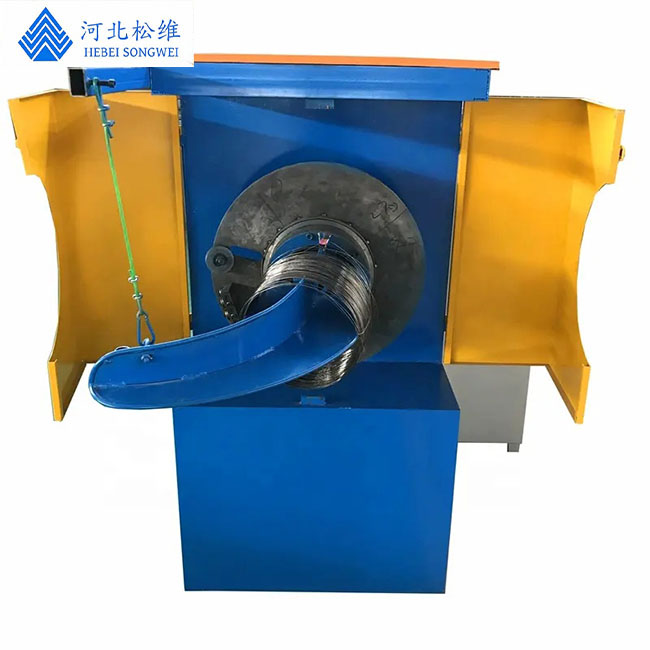

Wire take-up mode | Trunk type |
Power control | Frequency conversion control |

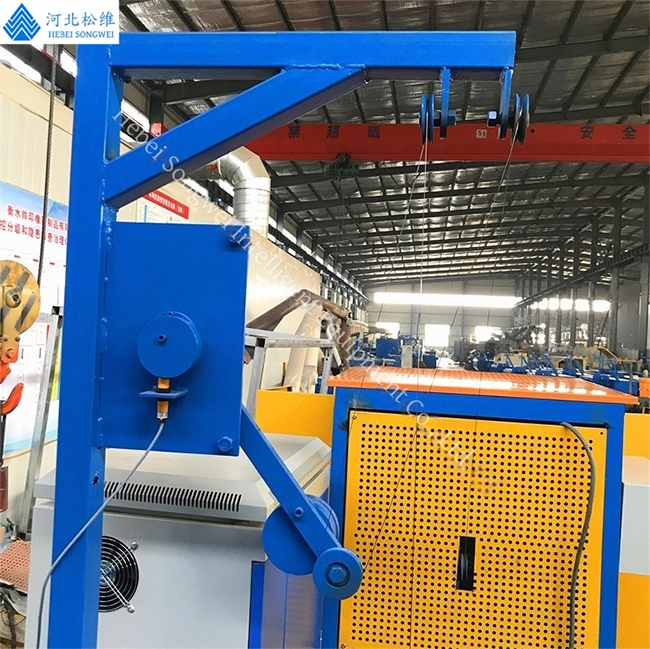

Tension control | Swing arm |
Our Services
1. We not only provide customers with excellent solutions, related equipment and perfect services for steel wire production lines, but also provide customers with free technical services for steel wire production lines.
2. If you are in the production of steel wire or have any questions about the steel wire production line, please feel free to contact us Our solution and quotation will be sent to you soon with your special requirements.
3. Welcome to visit our factory and wire drawing line.
4. Engineers who can serve overseas machinery, free training on how to install and use machines, online support.
5. The cost of continuing maintenance after the warranty period expires is low.

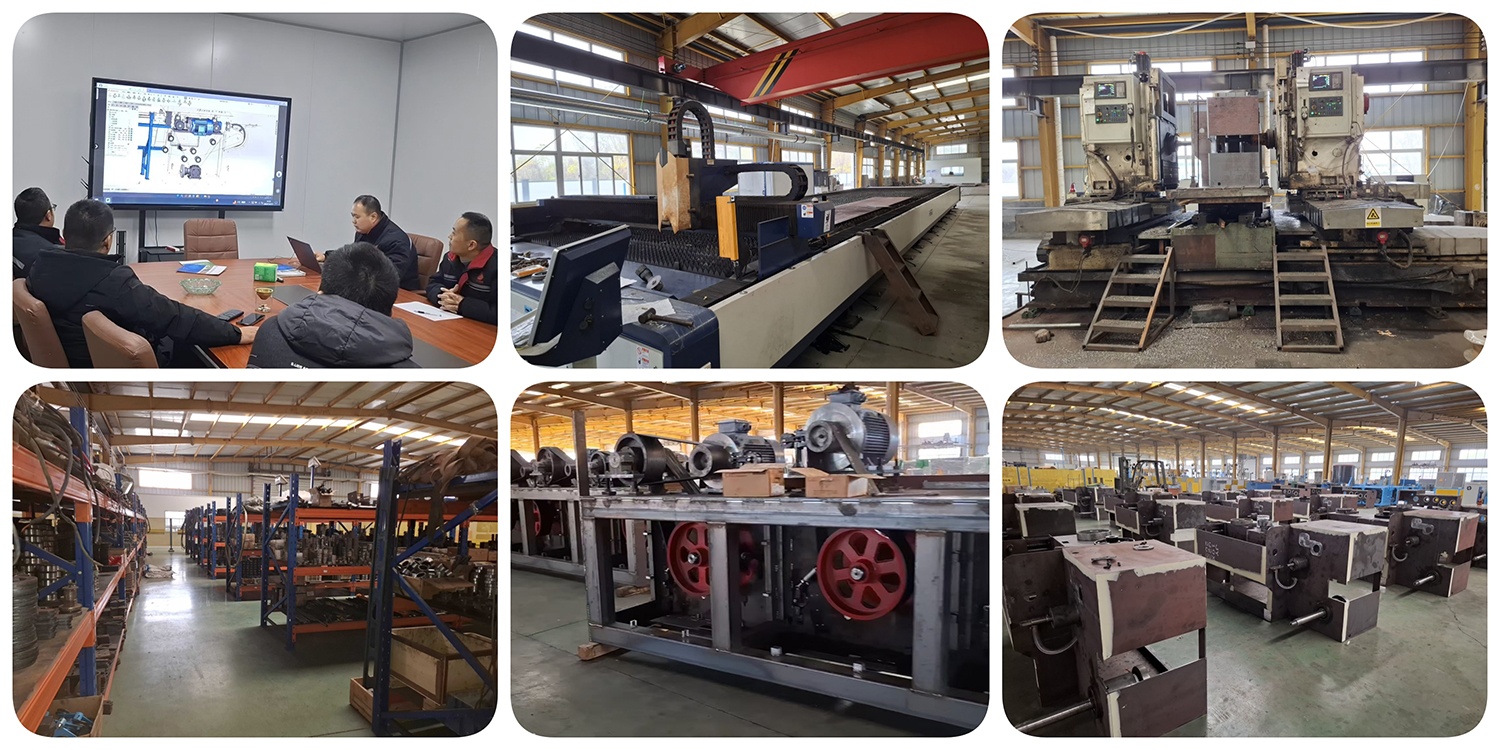

Plant Equipment
Exhibition Visit

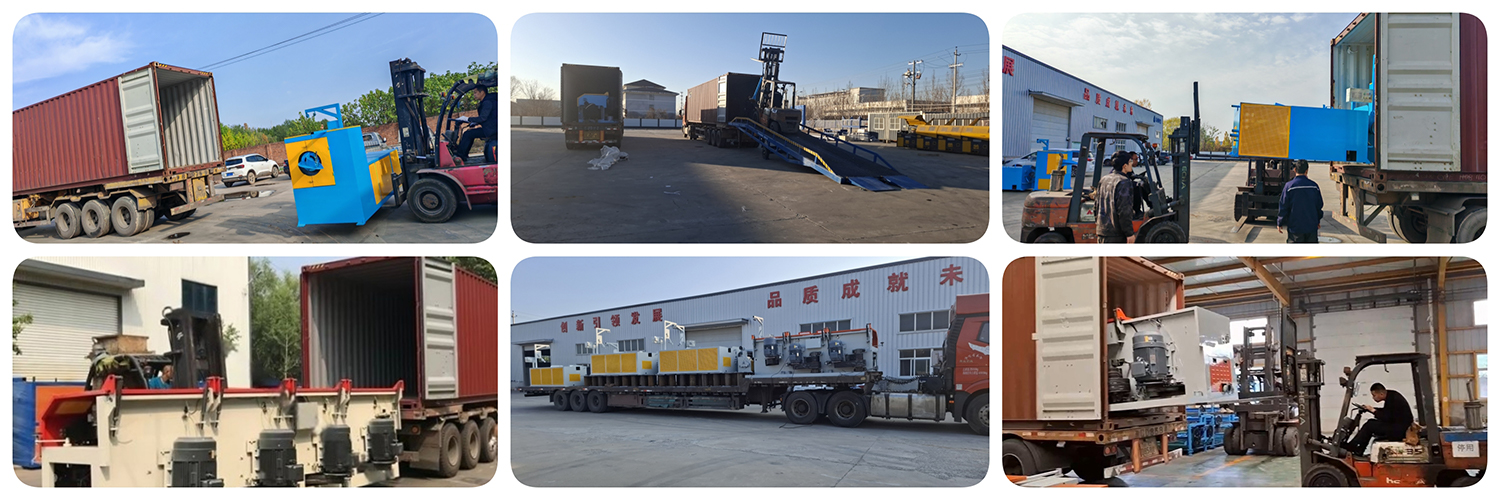

Freight Logistics
