Product Introduction

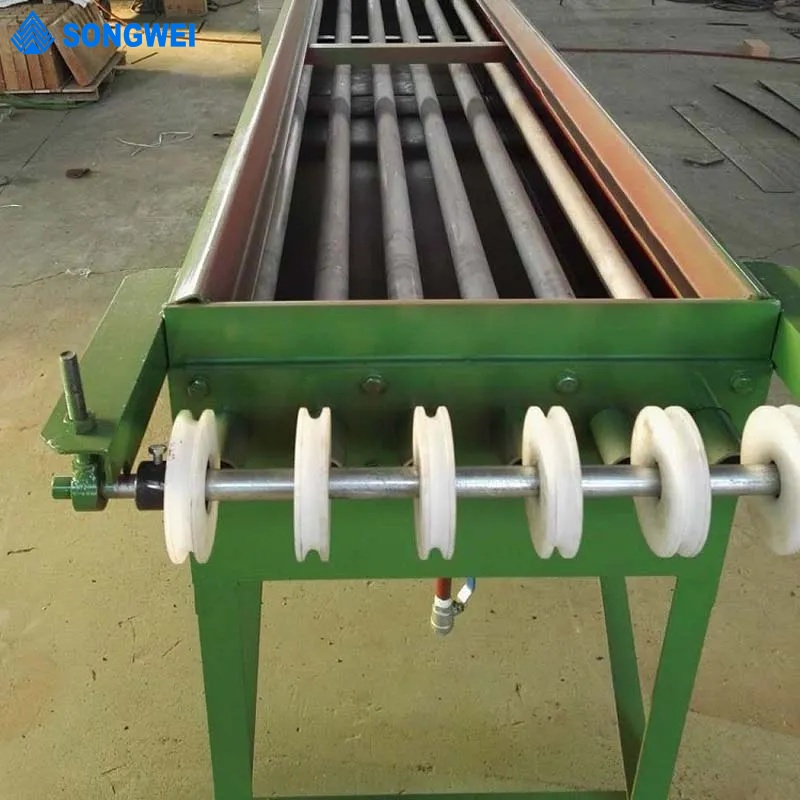

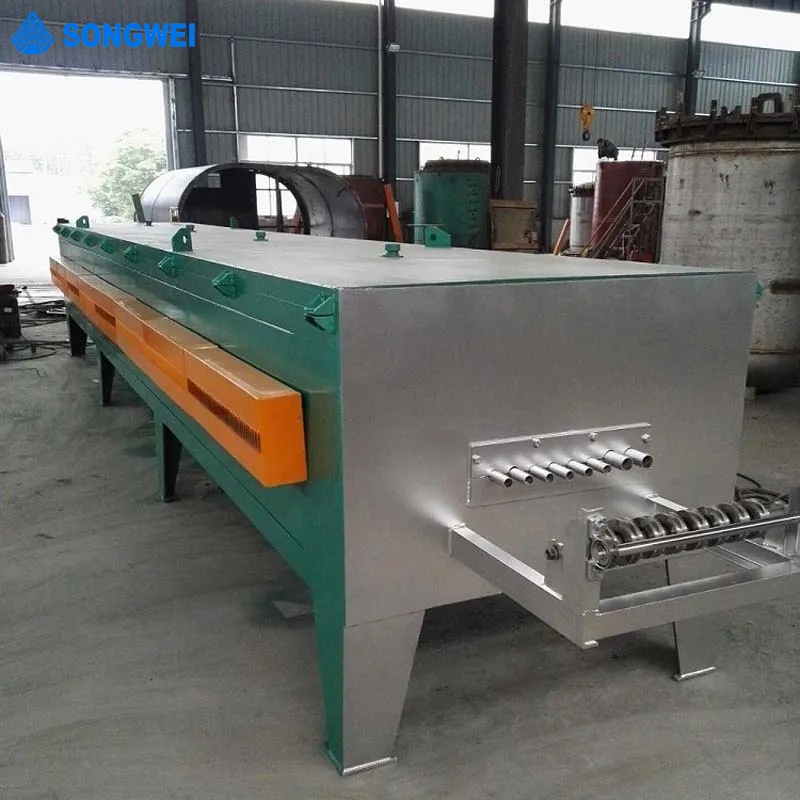

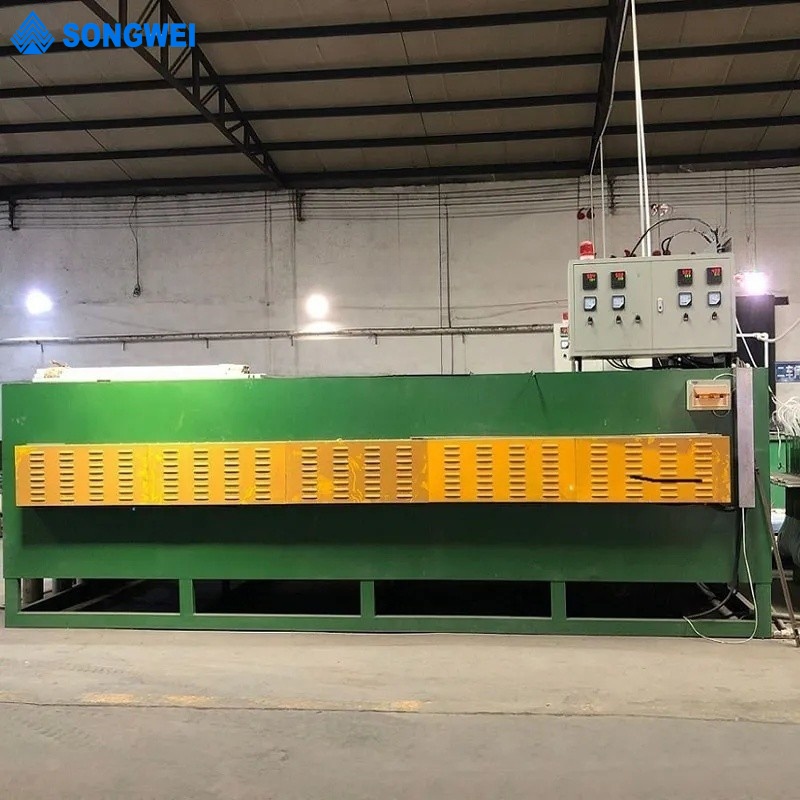

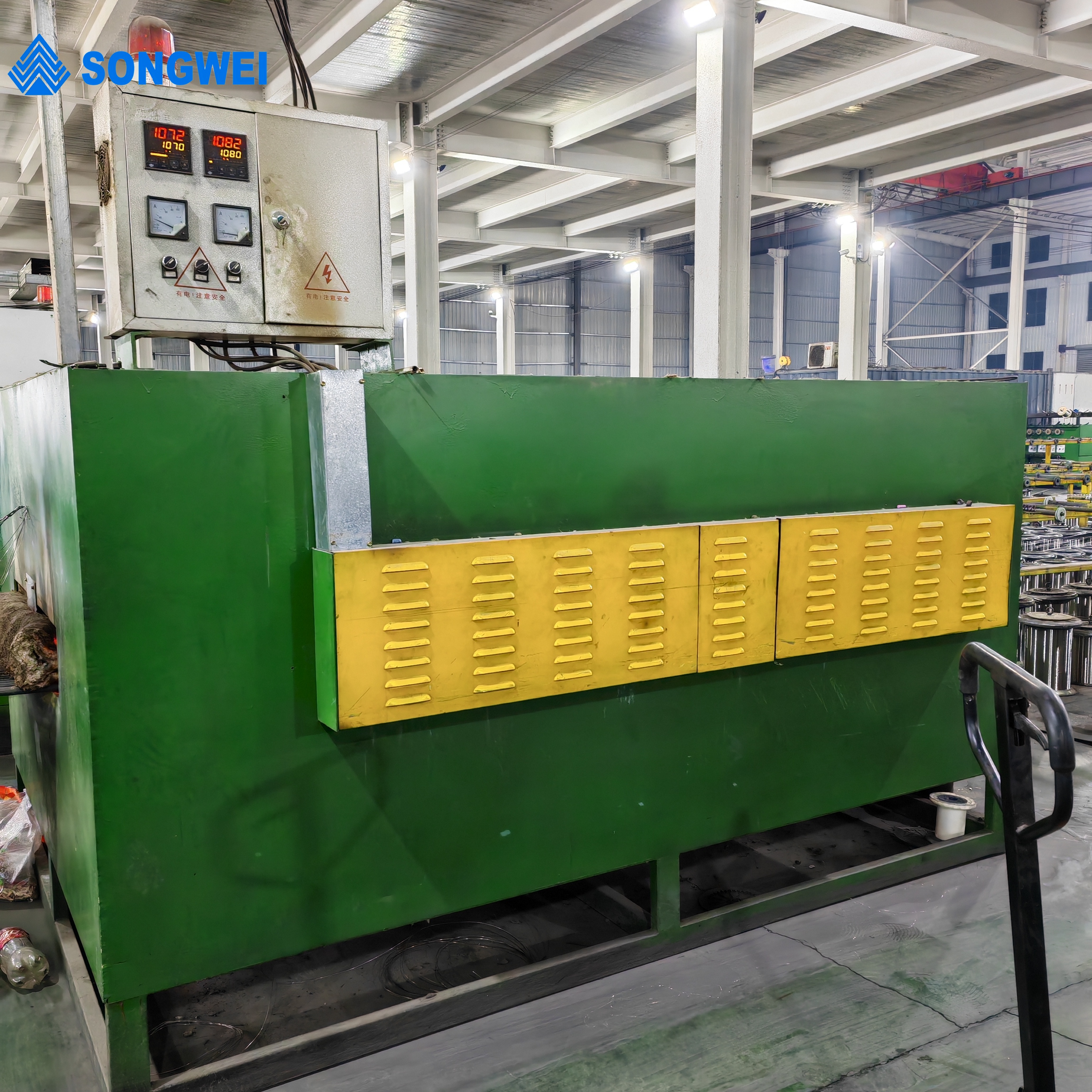

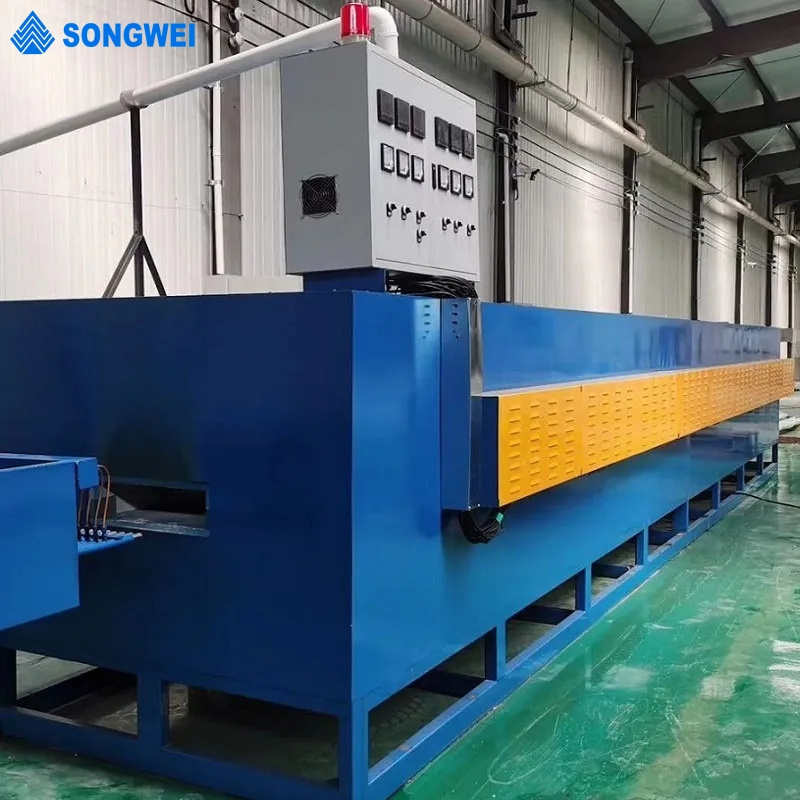

This tubular annealing furnace is continuous heat treatment furnace, is mainly used for bright annealing of copper wire, stainless steel wire or other metal wire in the protective atmosphere.This furnace is mainly composed of furnace body, stainless steel pipe, resistance heating element, electric control system, furnace temperature automatic control system and other components.
 |  |  |
Product Parameters
| Application | Annealing 304/316L stainless steel wire |
| Effective heating area | 12000x1400x200mm(LxWxH) |
| Furnace body dimension | 12000x1400x500mm(LxWxH) |
| Heating tube size | D25x3.0-12600mm |
| Tube material | Stainless steel 310S |
| Heating tube quantity | 40 |
| Annealing wire dimension | Φ0.8mm-Φ2.5mm |
| Wire height from the floor | 750mm |
| Max. temperature | 1150 ºC |
| Rated temperature | 1050 ºC |
| Temperature tolerance | ±2 ºC |
| Power source | Electricity or gas |
| Max. gas consumption | 20 Nm3/h |
| Max. air consumption | 200 Nm3/h |
| Max. smoke emission | 200 Nm3/h |
| Heating zone | 10 zone temperature control |
| Temperature control | PID and manual |
| Gas burner type | High-velocity burner |
| Burner quantity | 10 sets |
| Furnace surface temperature | ≤ambient+35ºC, Hot wind pipe external temperature≤50ºC |
Our Services
1. We not only provide customers with excellent solutions, related equipment and perfect services for steel wire production lines, but also provide customers with free technical services for steel wire production lines.
2. If you are in the production of steel wire or have any questions about the steel wire production line, please feel free to contact us Our solution and quotation will be sent to you soon with your special requirements.
3. Welcome to visit our factory and wire drawing line
4. Engineers who can serve overseas machinery, free training on how to install and use machines, online support.
5. The cost of continuing maintenance after the warranty period expires is low.
