Product Introduction

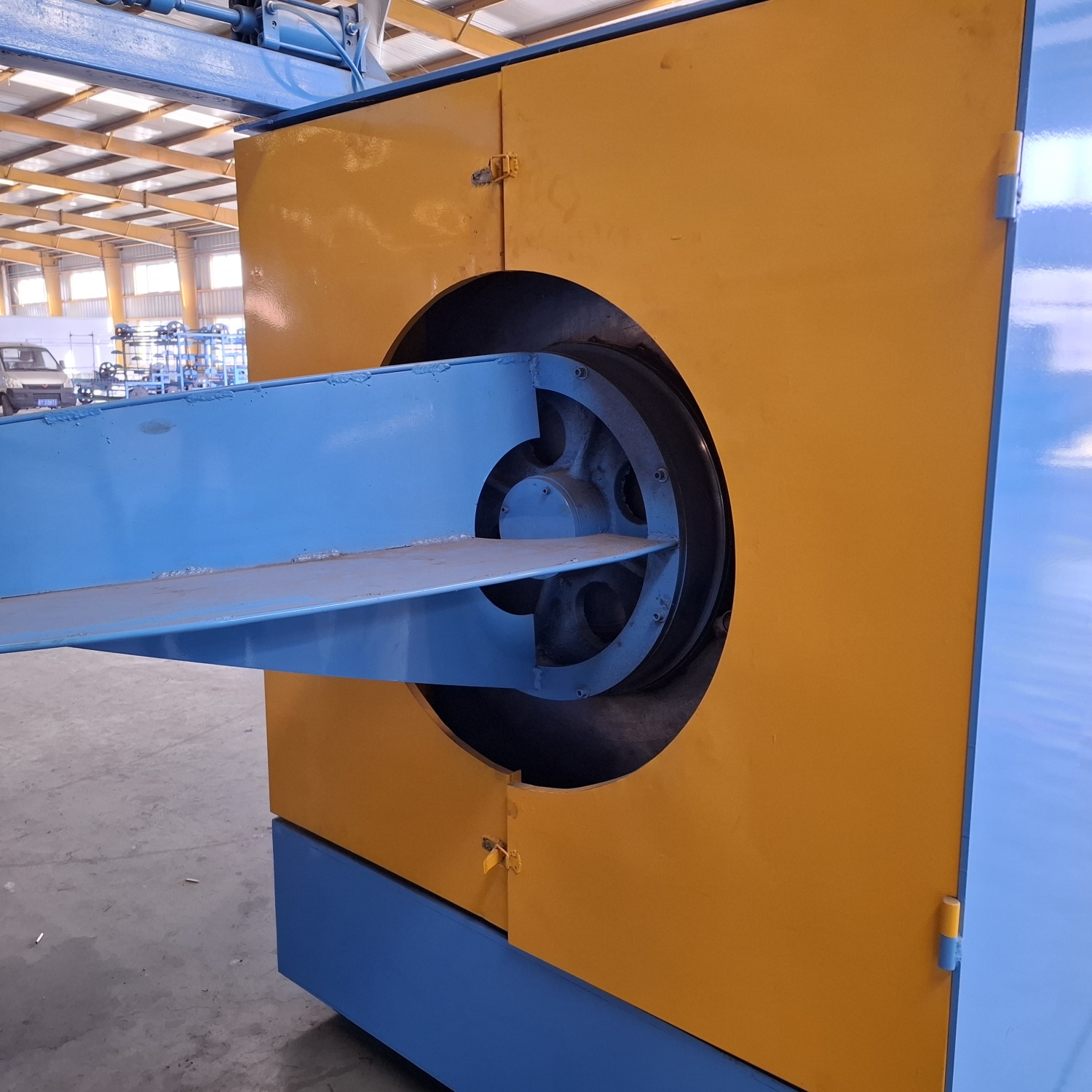

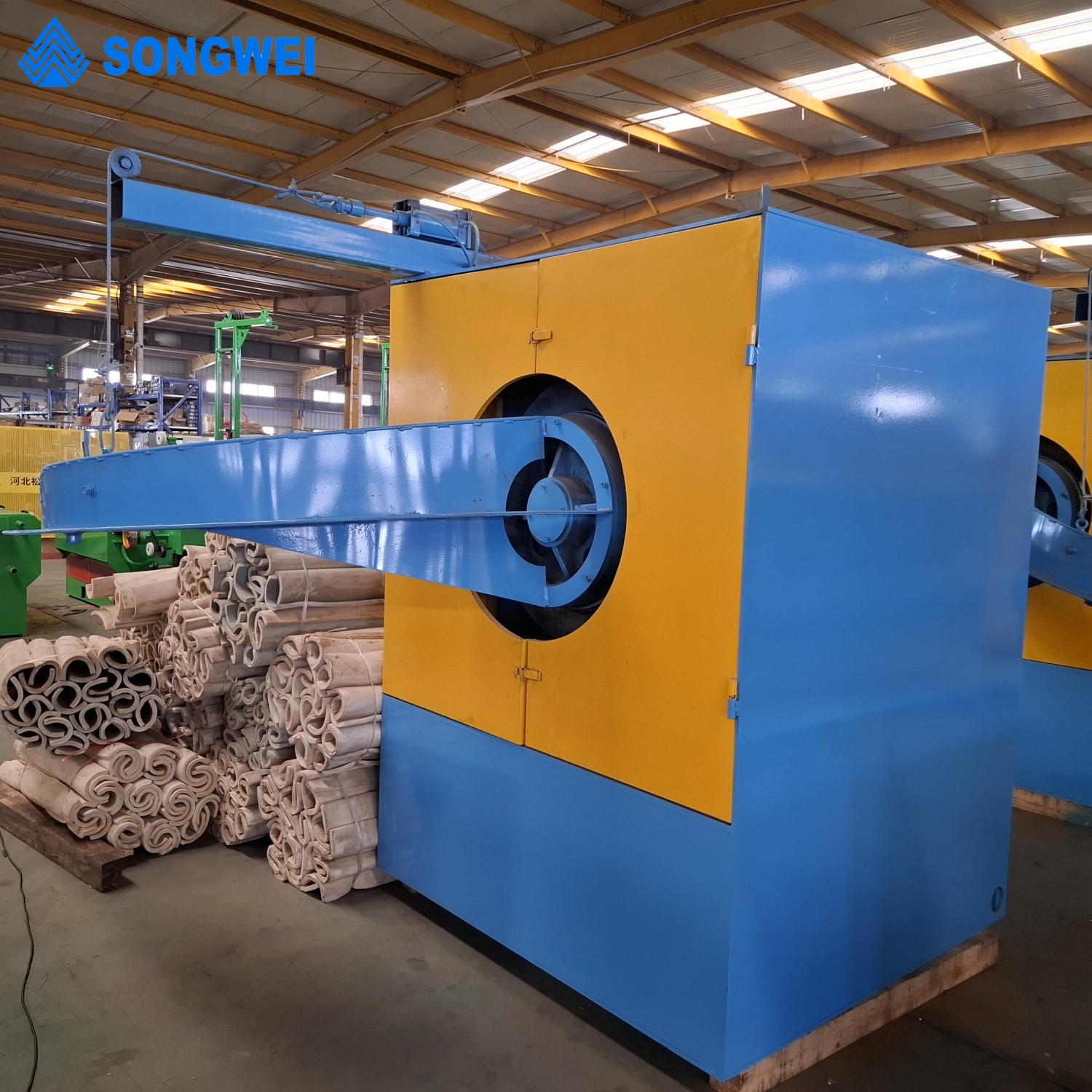

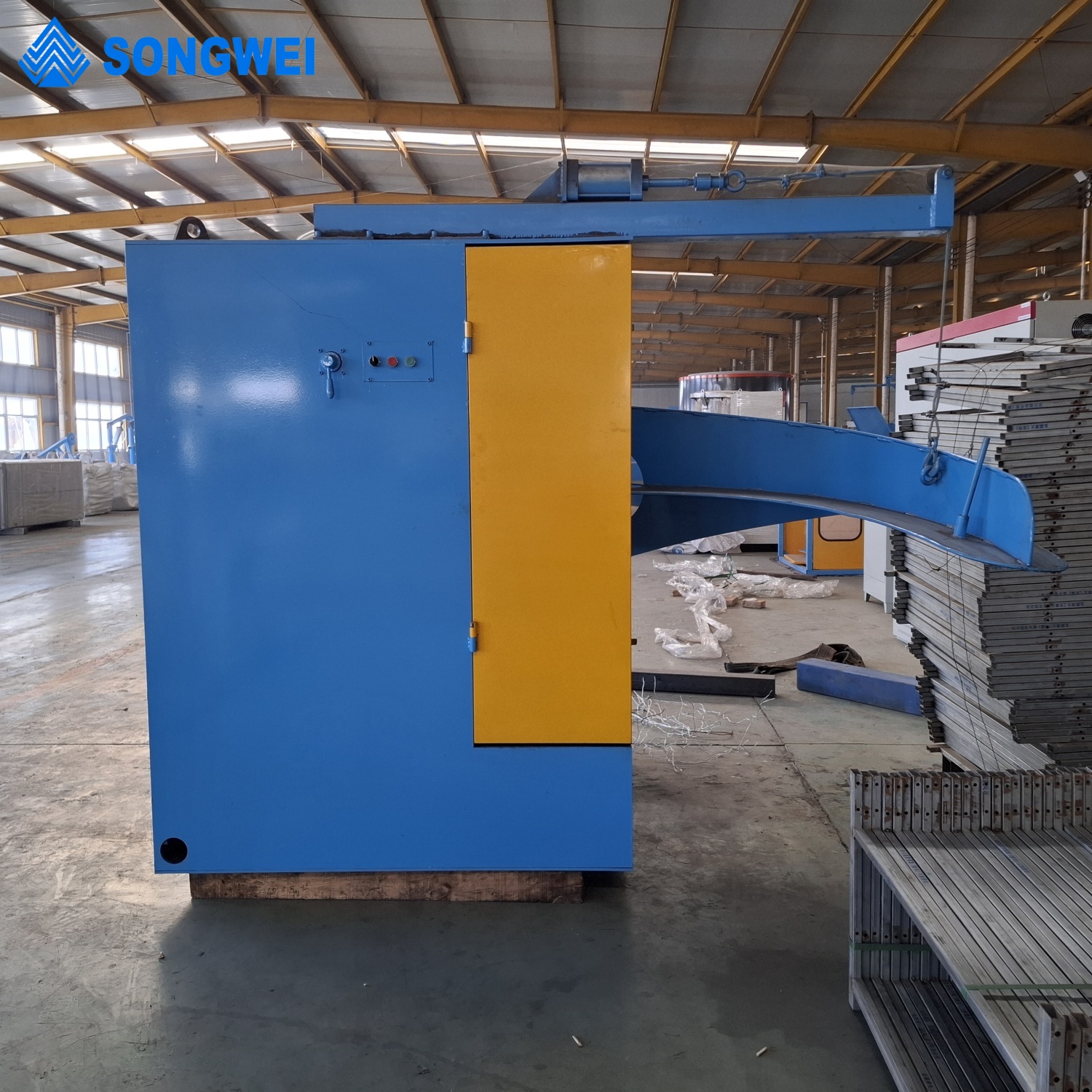

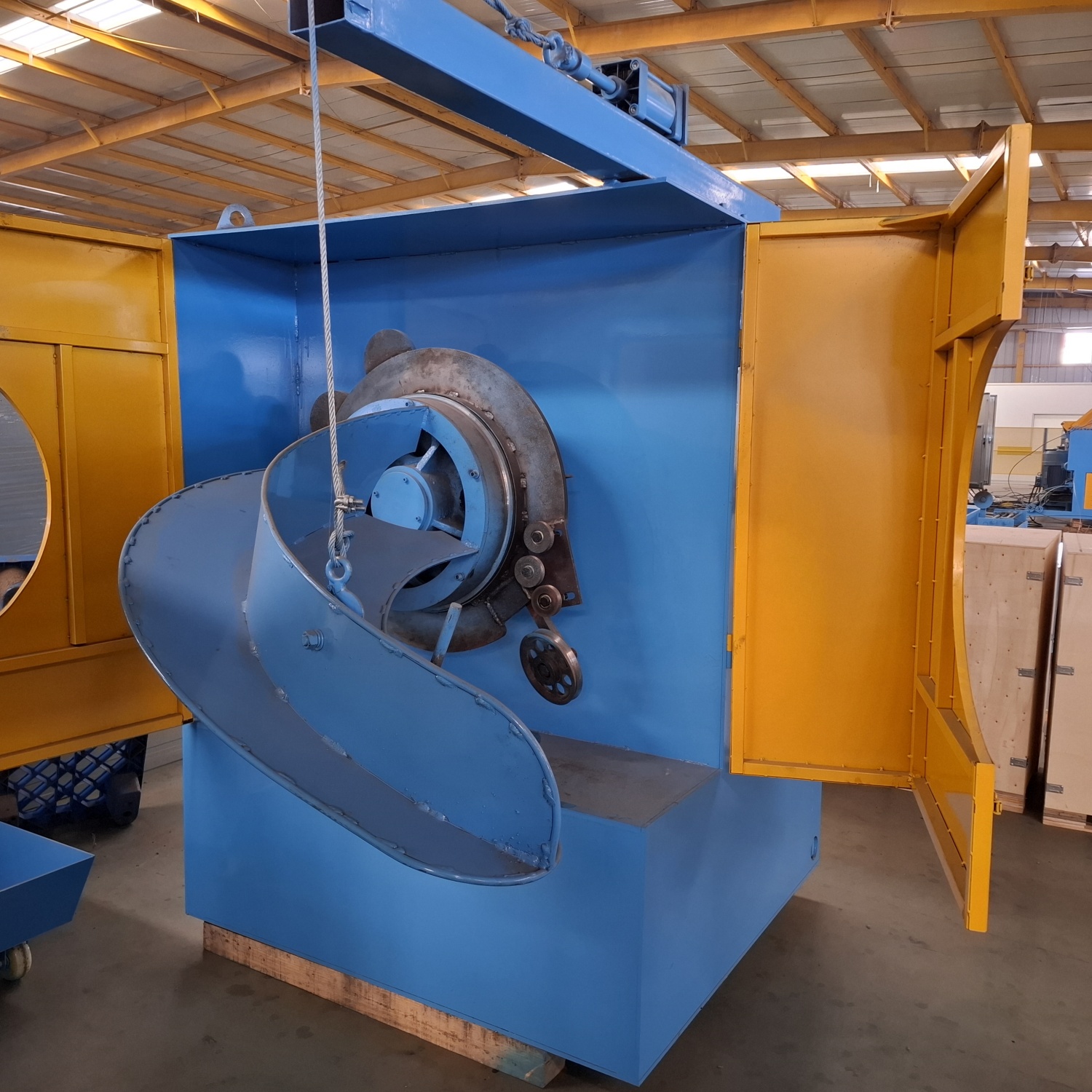

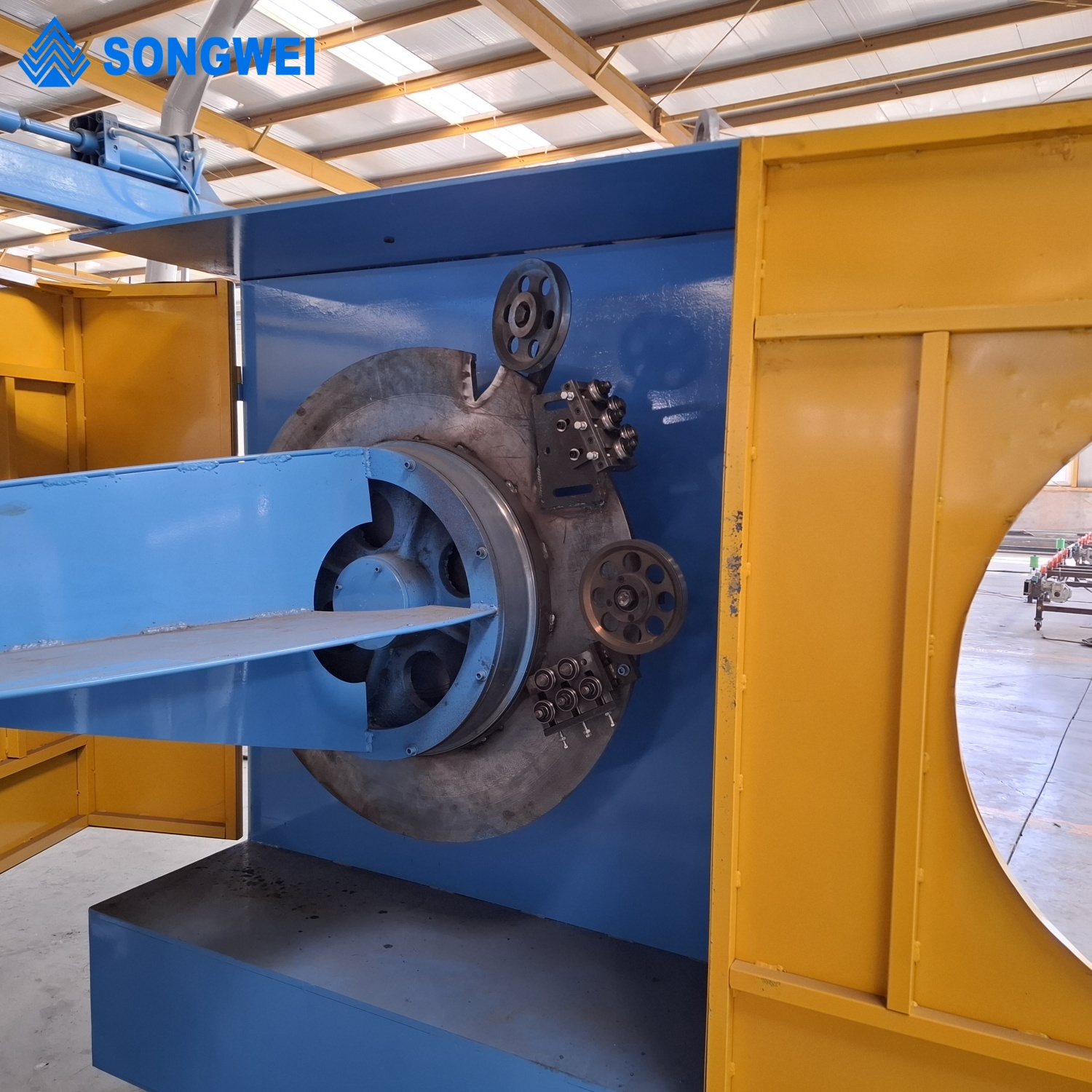

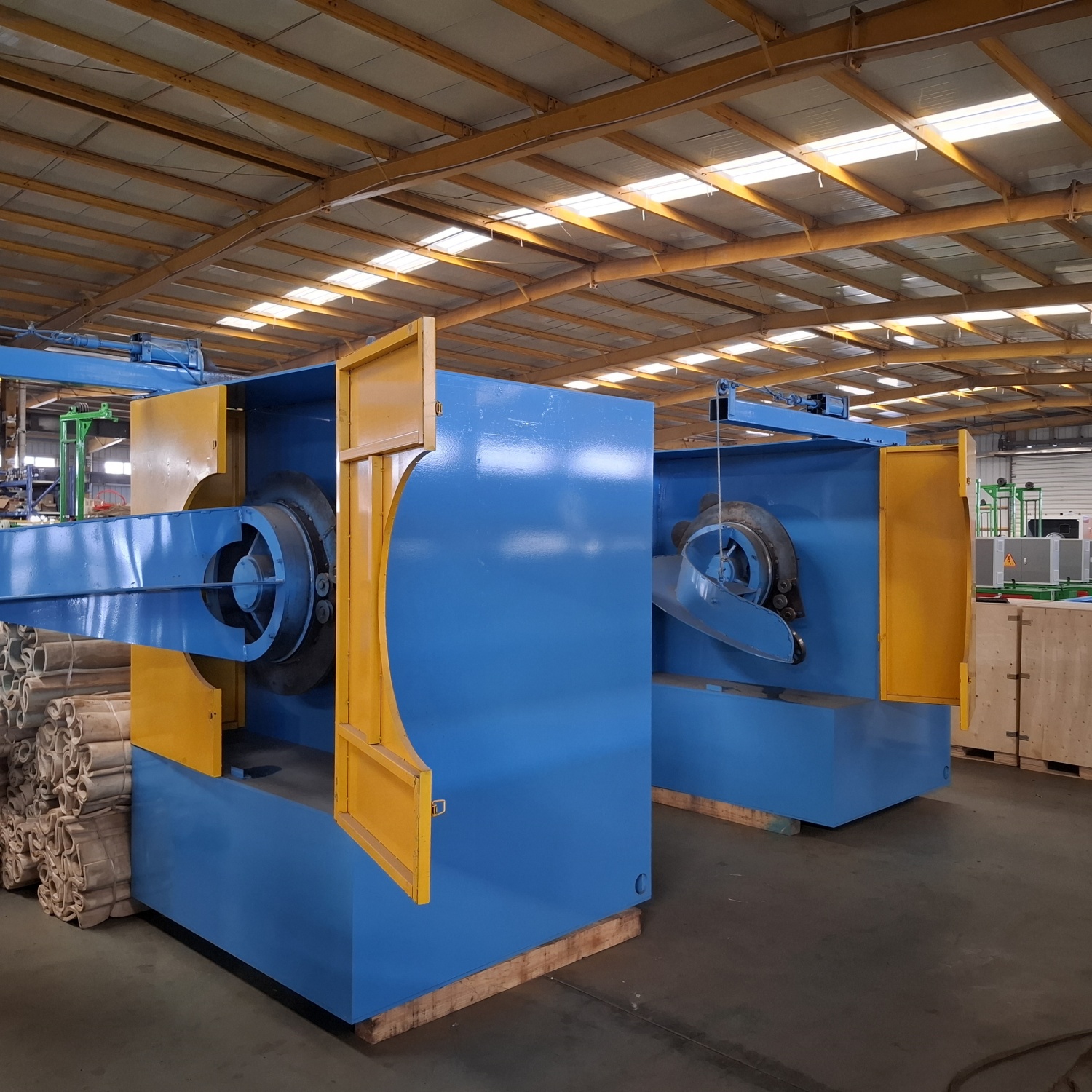

This machine is belongs to auxiliary equipment of wire drawing production line which it is adopted to discharge heavy draw wires automatically.

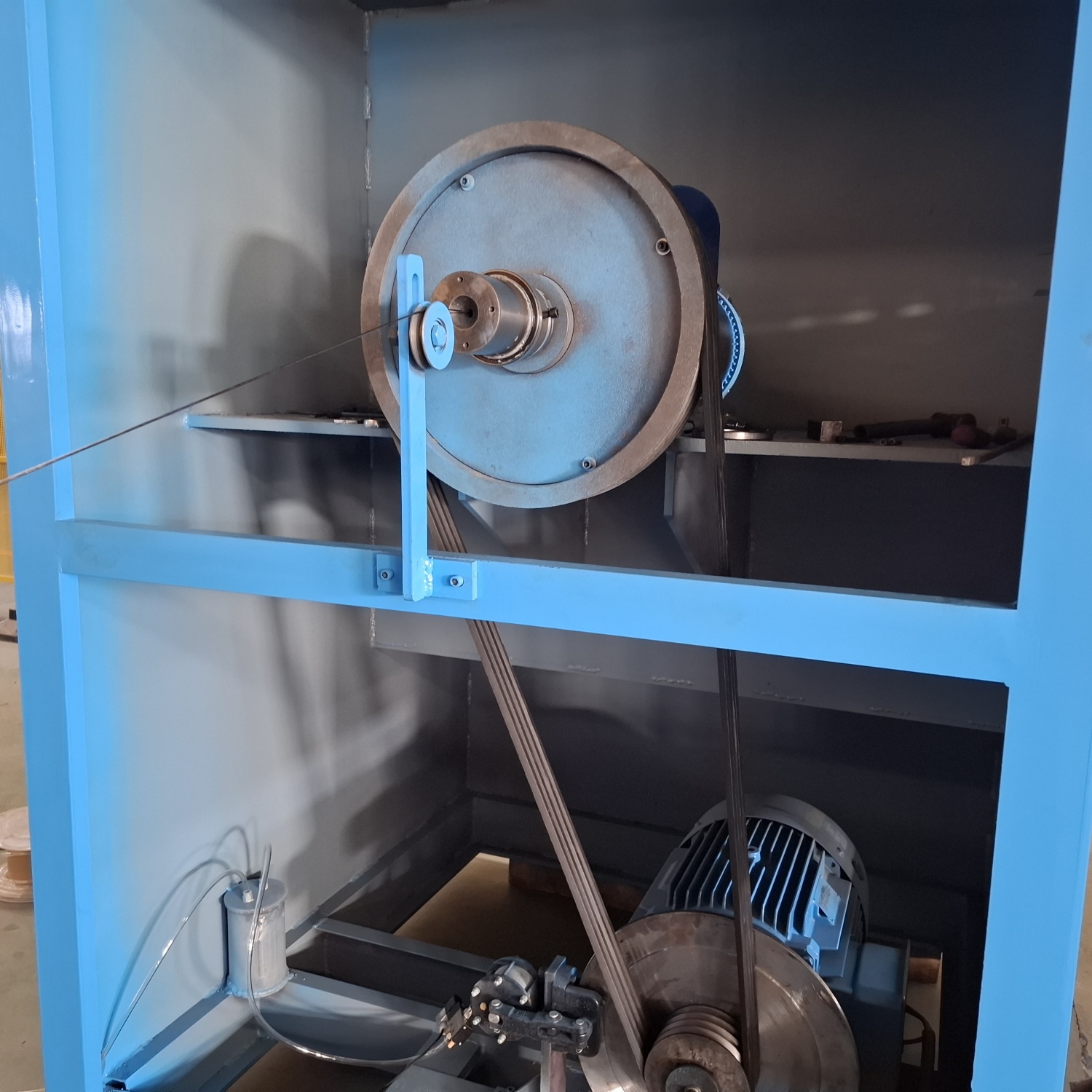

It is mainly included mechanical machine's shelf, decelerate constitution, motor, fixed spools reels, straight constitution, drive system, electric inverter control system and small go-cart etc.
Compared with the ordinary take-up machine, the sizing module is added to improve the straightness of the steel wire.

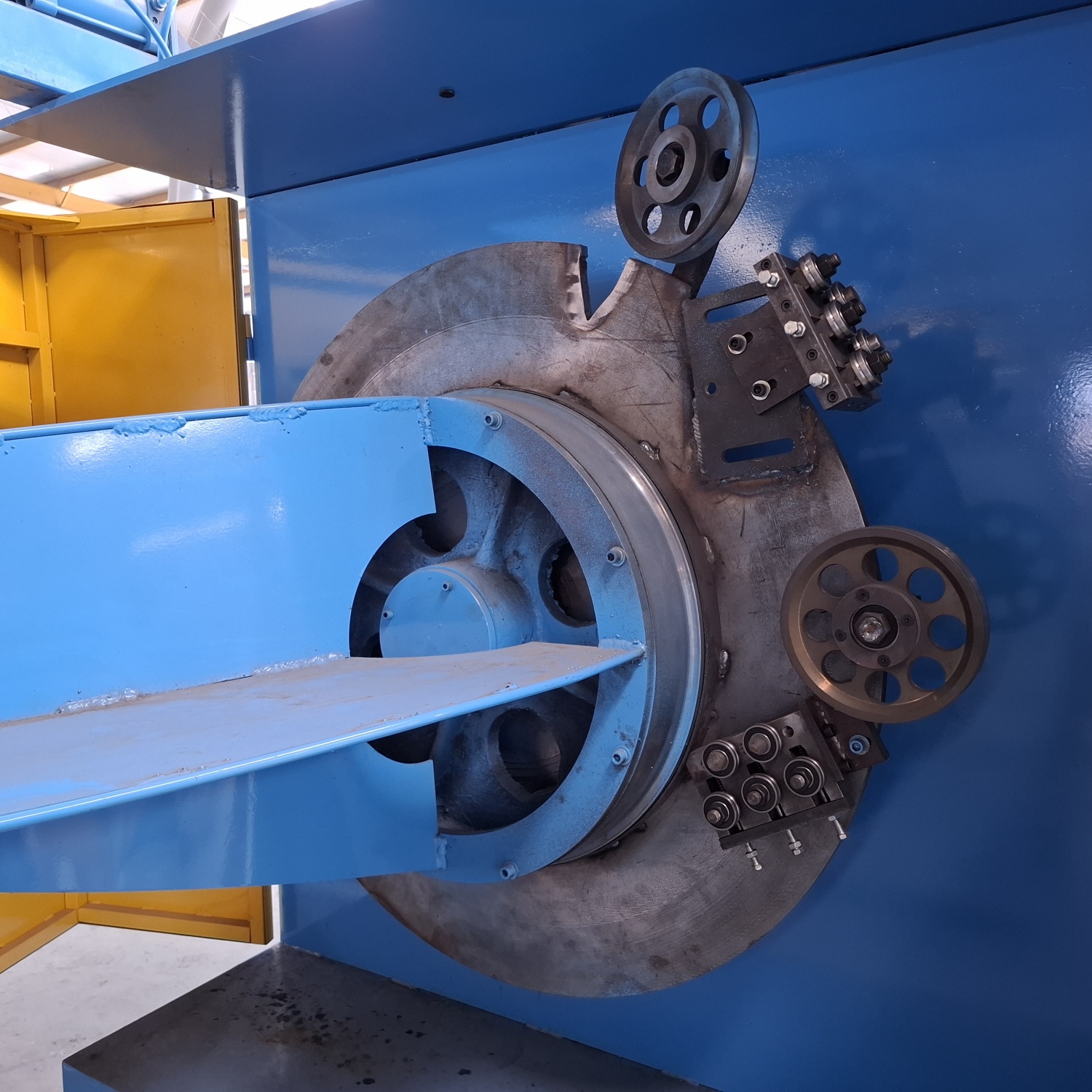

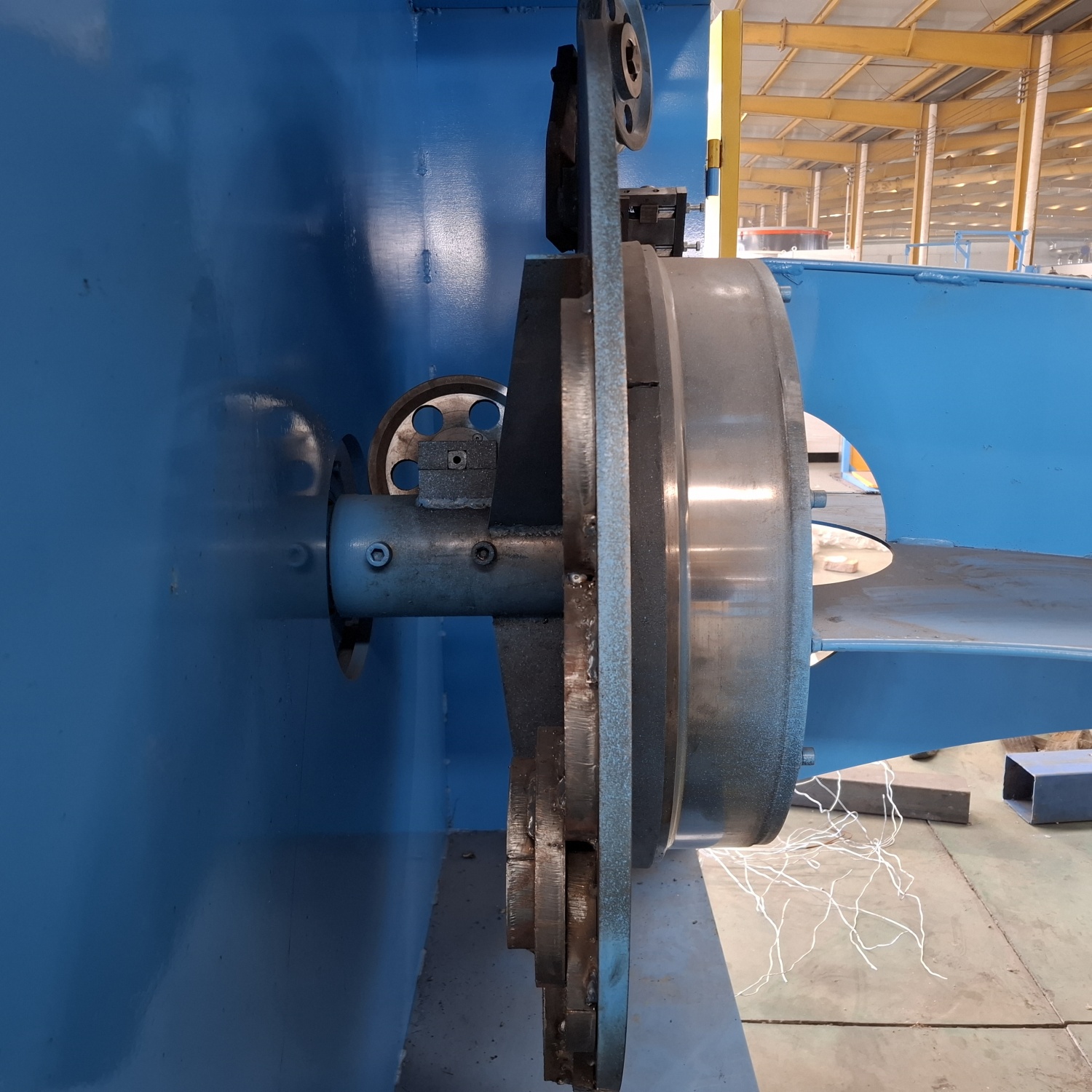

Its capstan is sprayed with tungsten carbide, and the coating thickness reaches 0.45mm.
And the equipment has a self-locking function, a digital meter, and can achieve automatic cutting.
After the wire groove take-up machine is used in the wire drawing machine, it can realize continuous and uninterrupted production and improve production efficiency.
 |  |  |
|
|
|
Product Parameters
| Suitable wire diameter | 1.6-4.0mm |
| Coiling spools diameter | 400mm-600mm |
| Coiling spools tensile strength | ≤800mpa |
| Coiling weight | 800-1000kgs |
| Coiling speed | 150-300m/min |
| Motor Power | 7.5kw-15kw |
| Overal size | 1.5m*1.5m*2m |
| Weight | 2300kgs |
Our Services
1. We not only provide customers with excellent solutions, related equipment and perfect services for steel wire production lines, but also provide customers with free technical services for steel wire production lines.
2. If you are in the production of steel wire or have any questions about the steel wire production line, please feel free to contact us Our solution and quotation will be sent to you soon with your special requirements.
3. Welcome to visit our factory and wire drawing line
4. Engineers who can serve overseas machinery, free training on how to install and use machines, online support.
5. The cost of continuing maintenance after the warranty period expires is low.
