Product Introduction

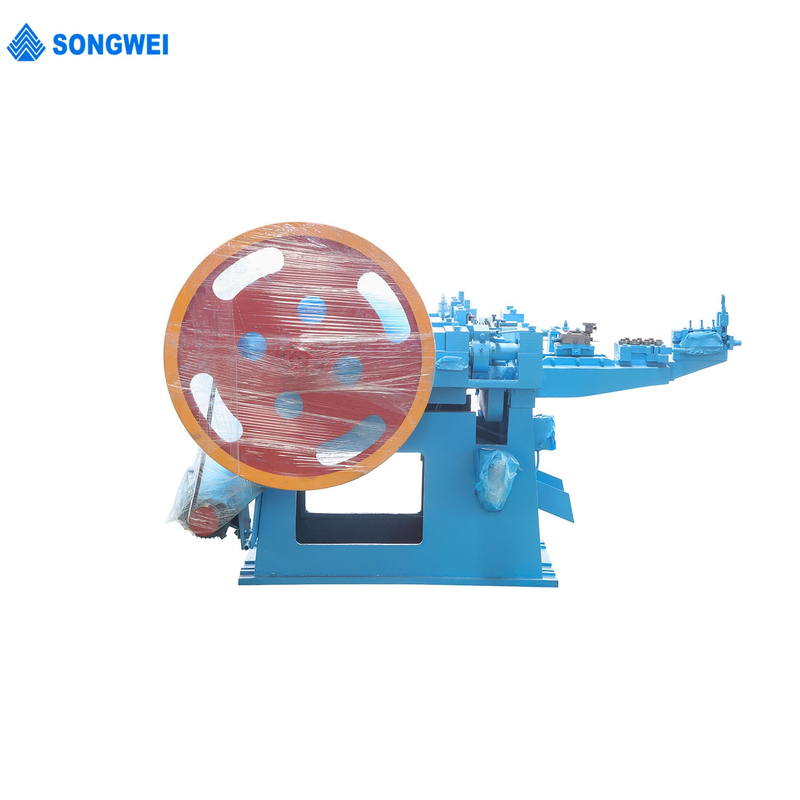

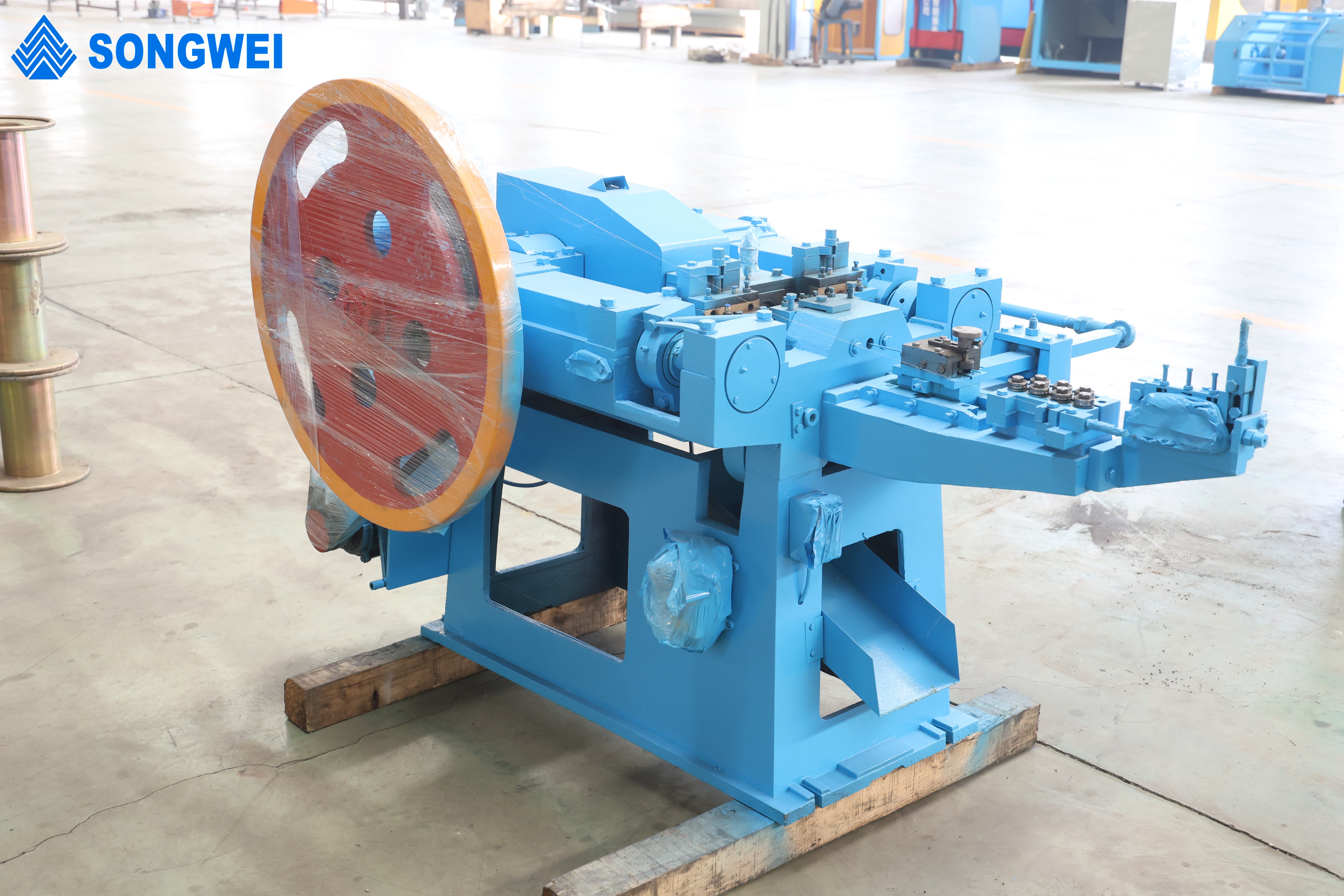

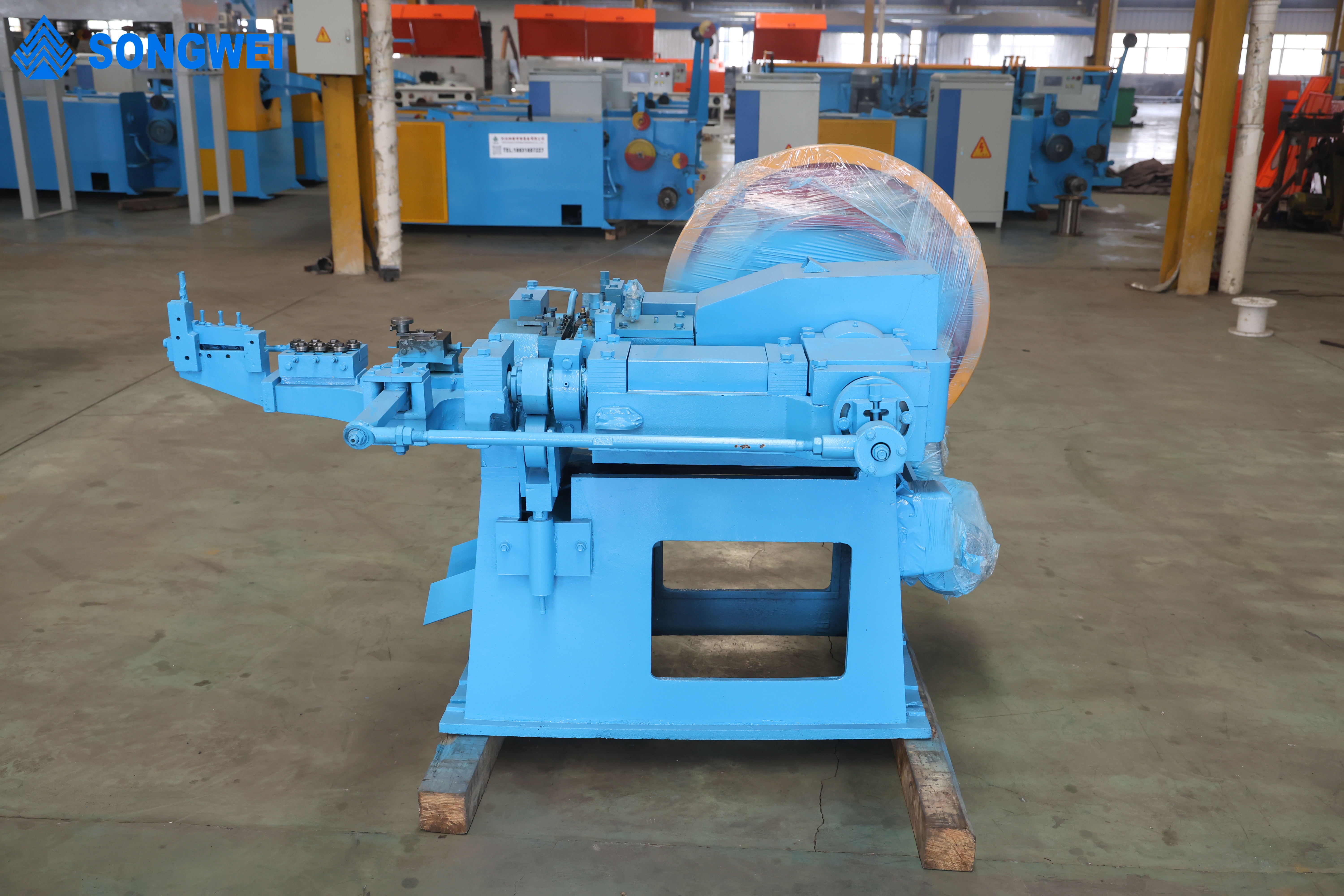

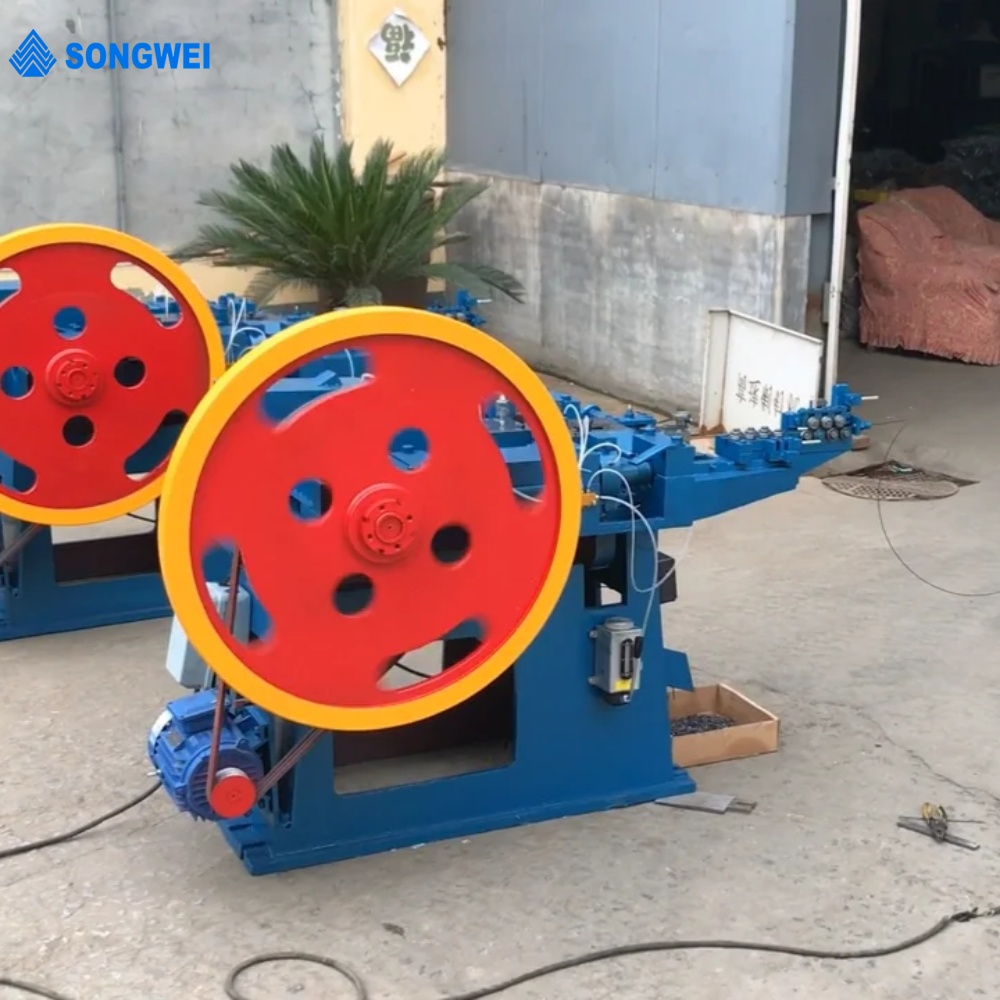

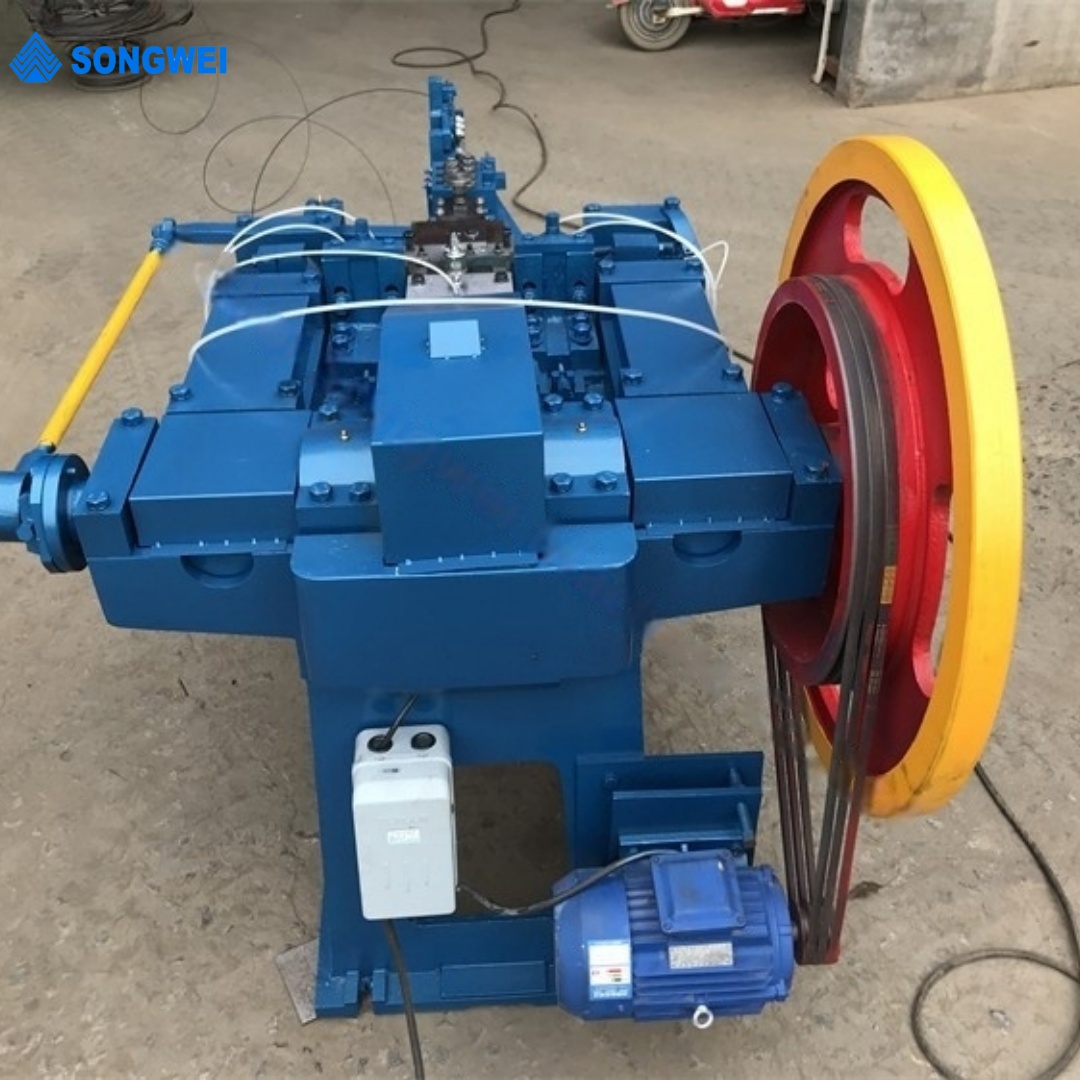

The automatic nail making machine is used for producing various normal nails and special nails. And the assortment of our products is complete. It has wide applications,high speed,simple operation and reliable running.
1. This wire nail making machine adopts plunger type structure to ensure the high speed, low noise, less blunt acoustic, easy operation, safety and other features.
2. Nails making machine is adopt of bearing and oil pipe lubricating structure to ensure the high working speed .
3. Energy saving, stable and reliable performance. The device has small volume, flexible to move, low noise, low consumption, easy installation, etc.
 |  |  |
|
|
|

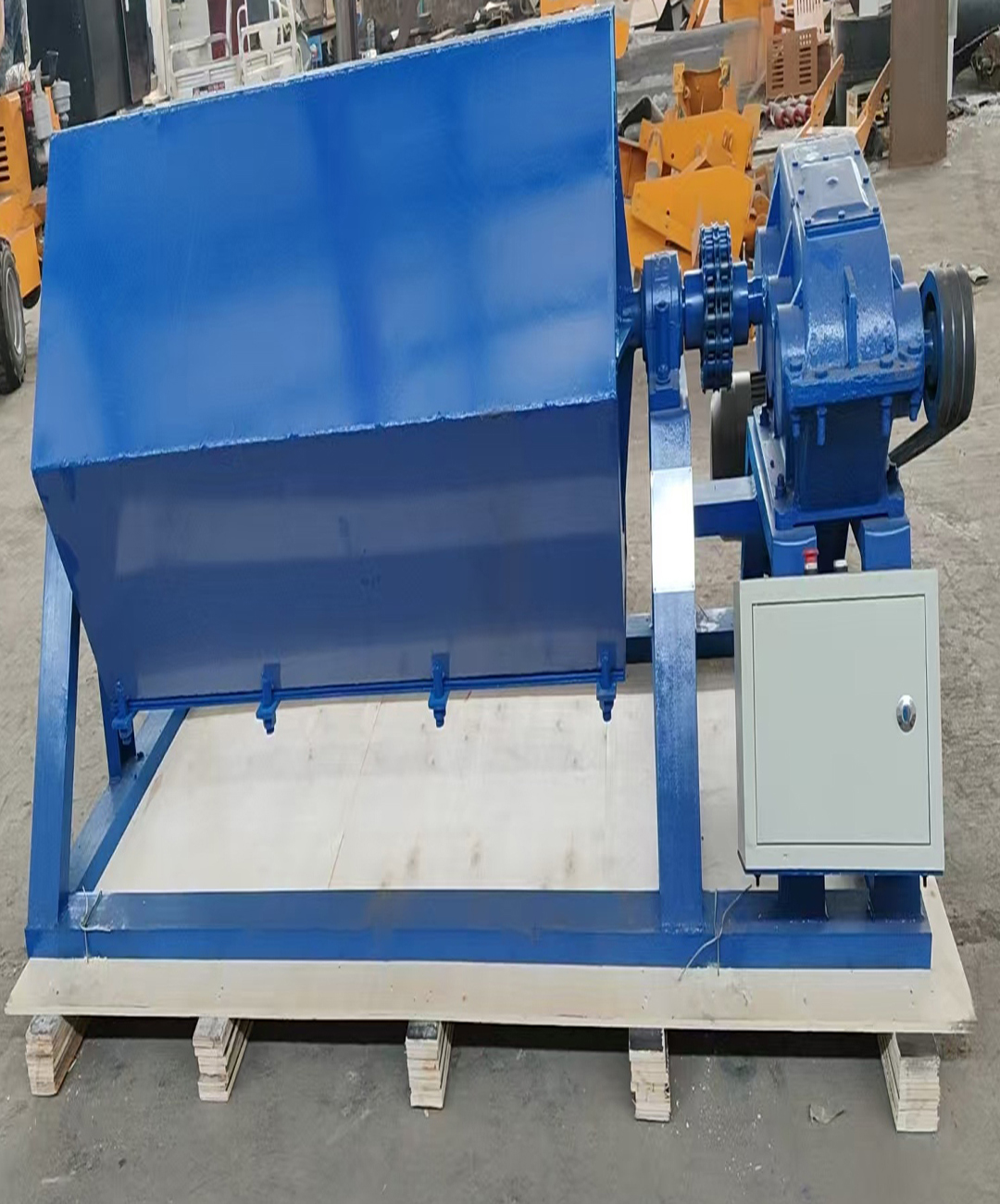

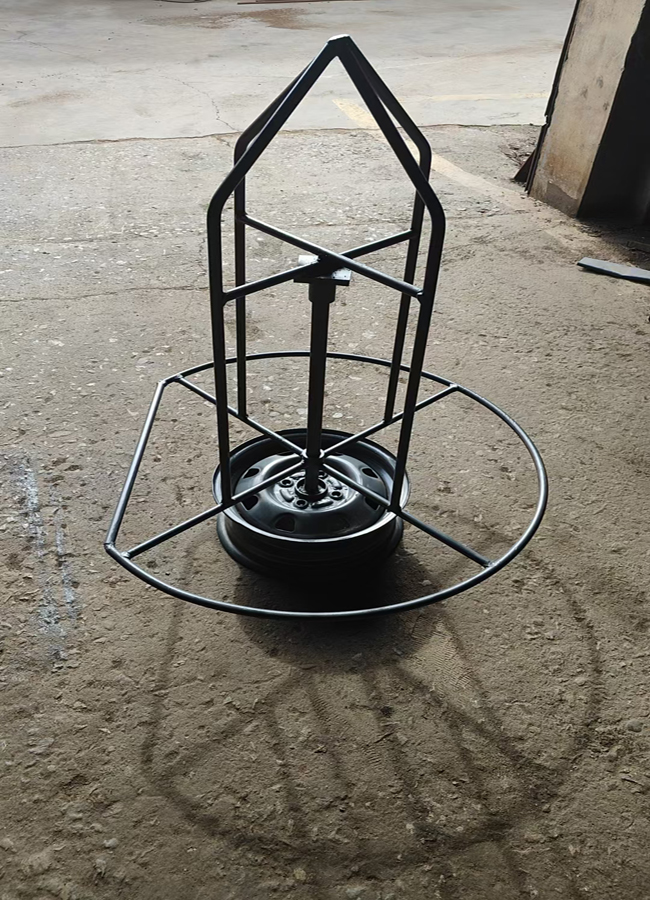

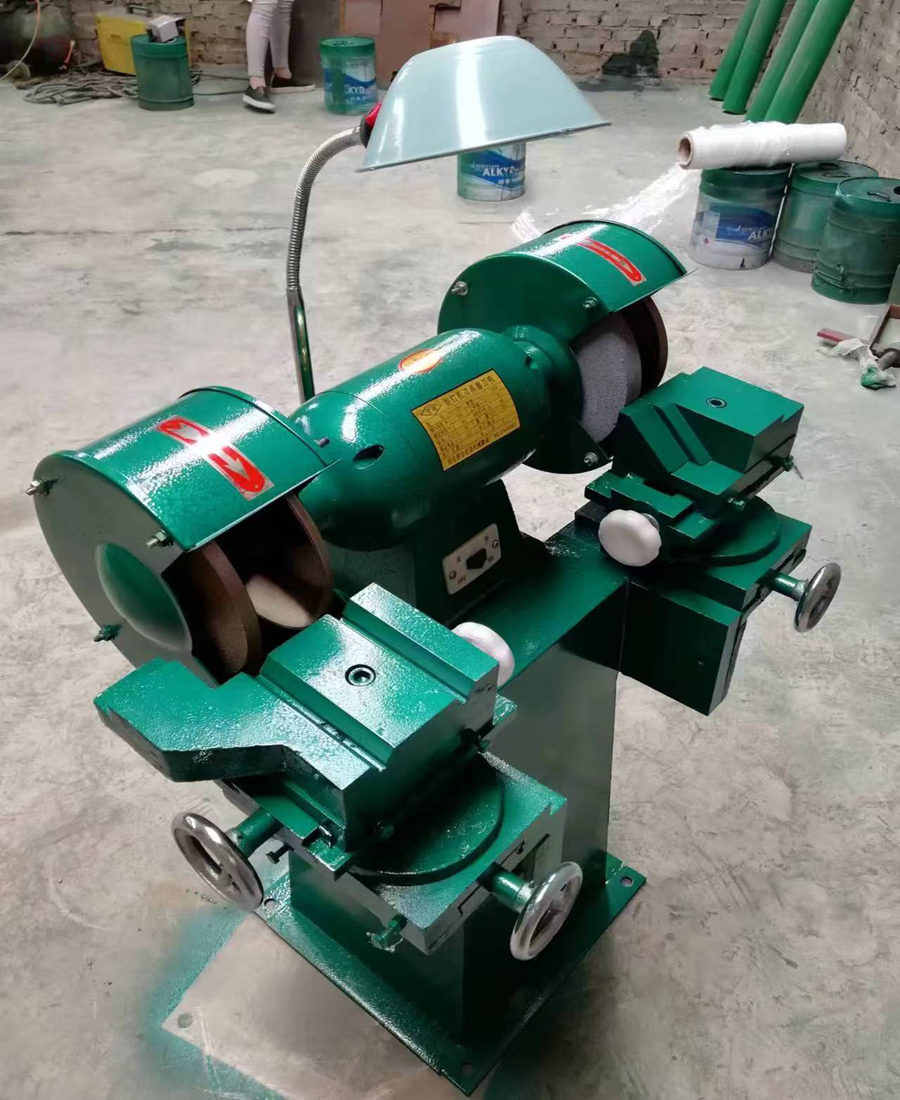

We can supply various auxiliary equipment to you.

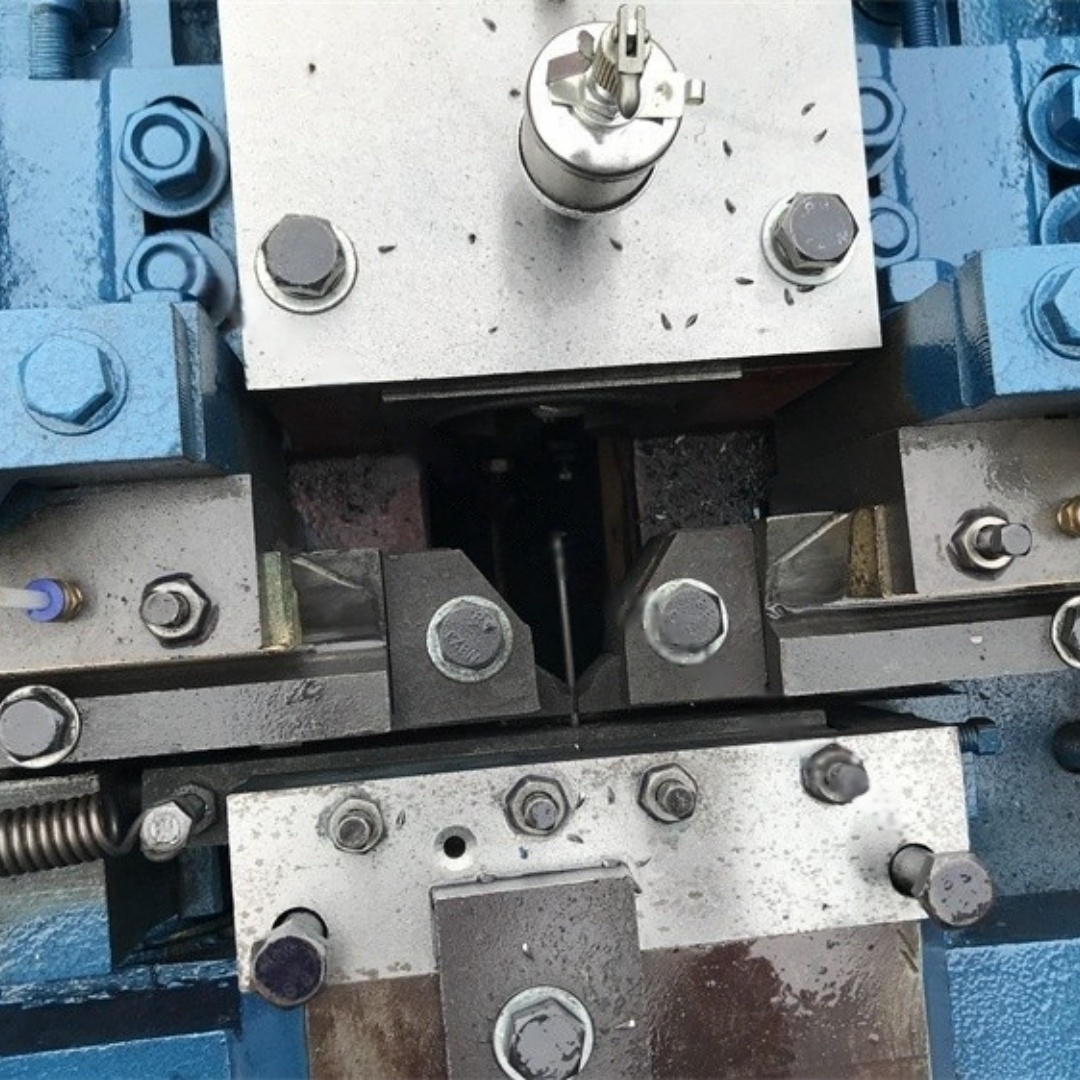

Cold heading cutting device
Use the pier head to strike the clamped steel wire to obtain the required nail head, while squeezing out the nail tip and cutting it.

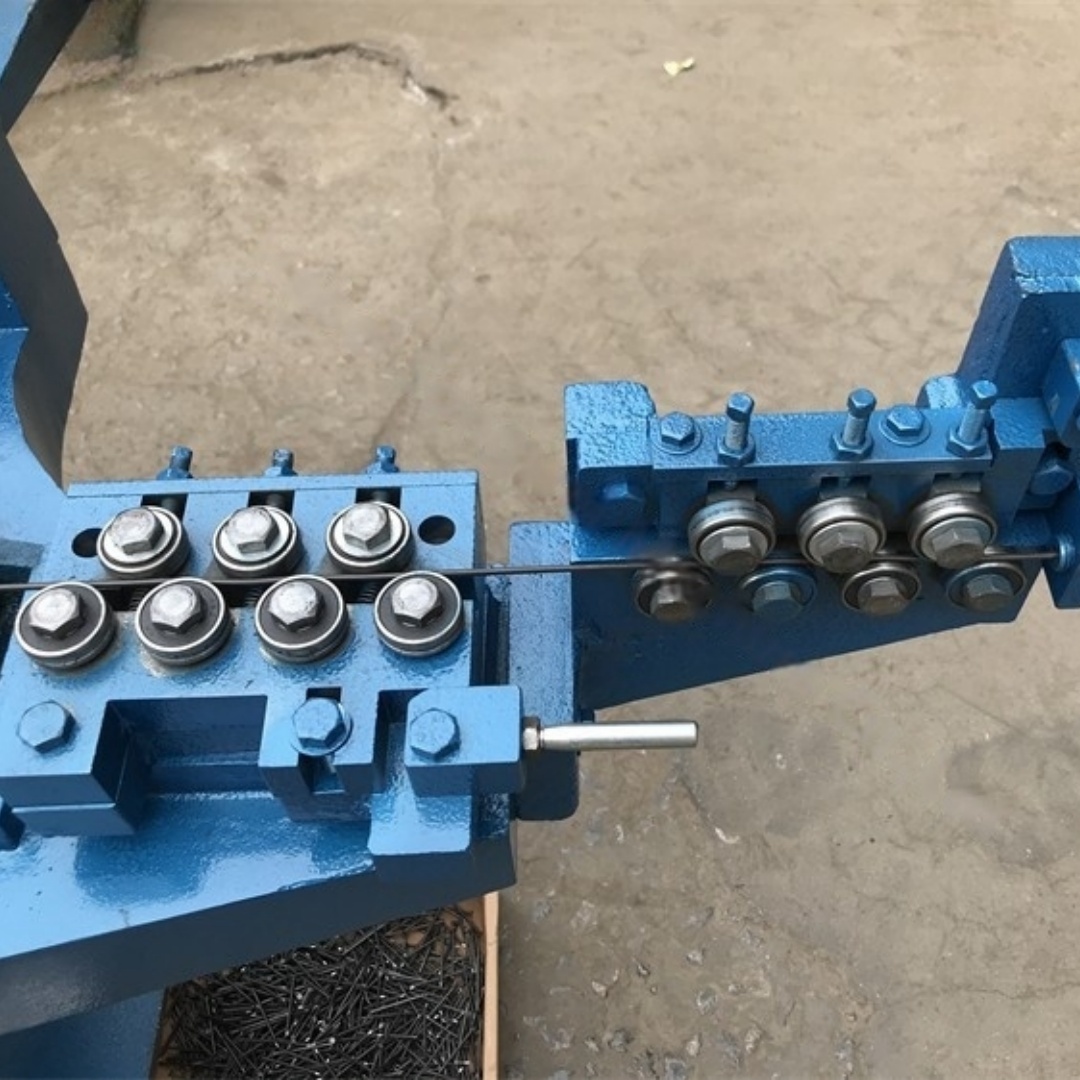

Straightening and wire feeding
By the straightening wheel, the bent steel wire is turned into a straight steel wire, and the iron wire is sent to the designated position according to the rhythm.

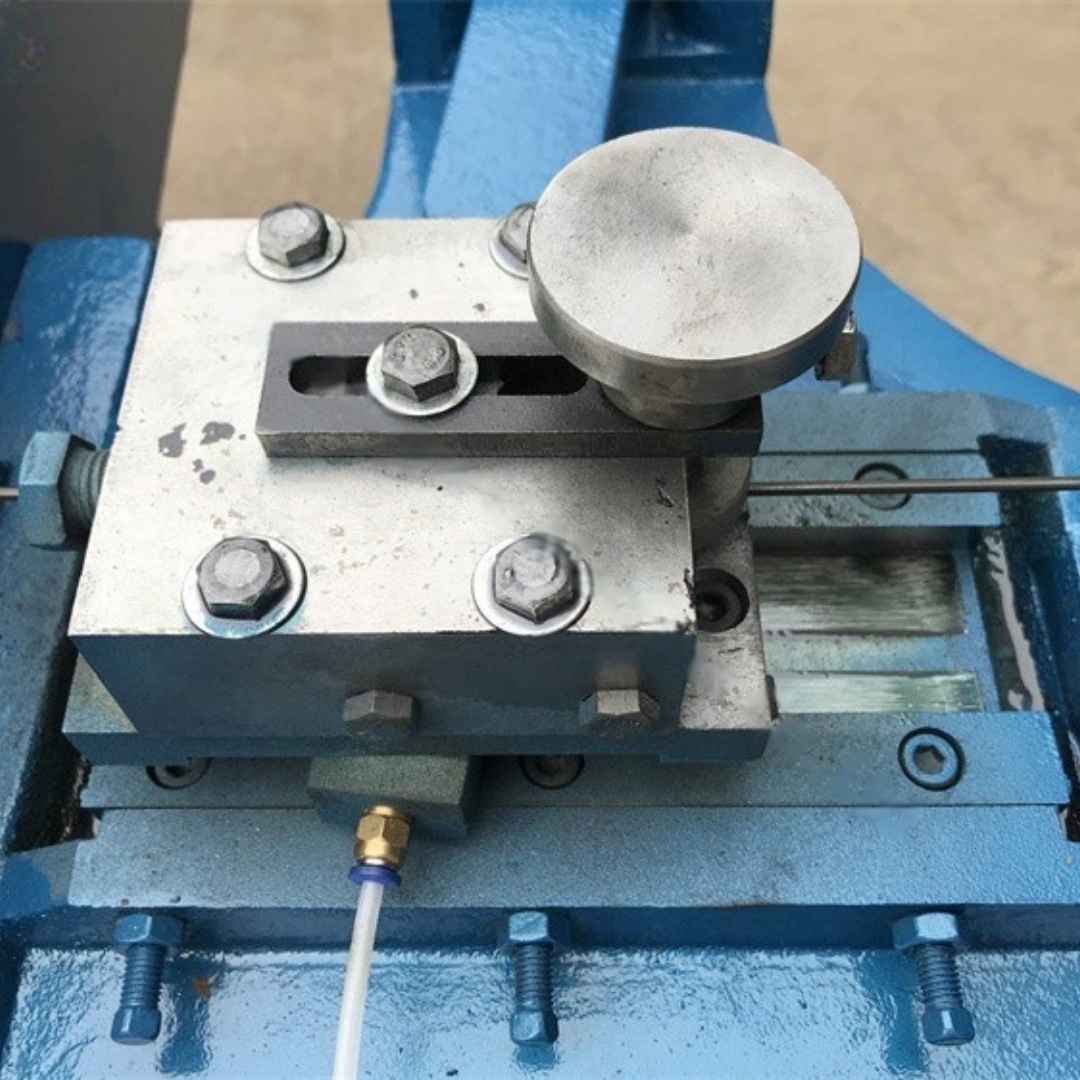

Wire clamping device
Loosen the wire during wire feeding, clamp the wire at other times and do not move it. Repeat this action.
Product Parameters
| Model | 1C | 2C | 3C | 4C | 5C |
| Maximum nail length (mm) | 25 | 50 | 90 | 125 | 170 |
| Maximum nail diameter (mm) | 1.4 | 2.5 | 3.2 | 5 | 5.5 |
| Nail making speed (pieces/min) | 480 | 320 | 280 | 250 | 200 |
| Motor power (kw) | 1.5 | 2.2 | 3 | 5.5 | 7.5 |
| Machine weight (kg) | 820 | 1100 | 1350 | 1900 | 2200 |
| Machine Dimensions (mm) | 1350*950*1000 | 1600*1150*1100 | 1990*1200*1250 | 2200*1400*1300 | 2700*1550*1500 |
Our Services
1. We not only provide customers with excellent solutions, related equipment and perfect services for steel wire production lines, but also provide customers with free technical services for steel wire production lines.
2. If you are in the production of steel wire or have any questions about the steel wire production line, please feel free to contact us Our solution and quotation will be sent to you soon with your special requirements.
3. Welcome to visit our factory and wire drawing line
4. Engineers who can serve overseas machinery, free training on how to install and use machines, online support.
5. The cost of continuing maintenance after the warranty period expires is low.
